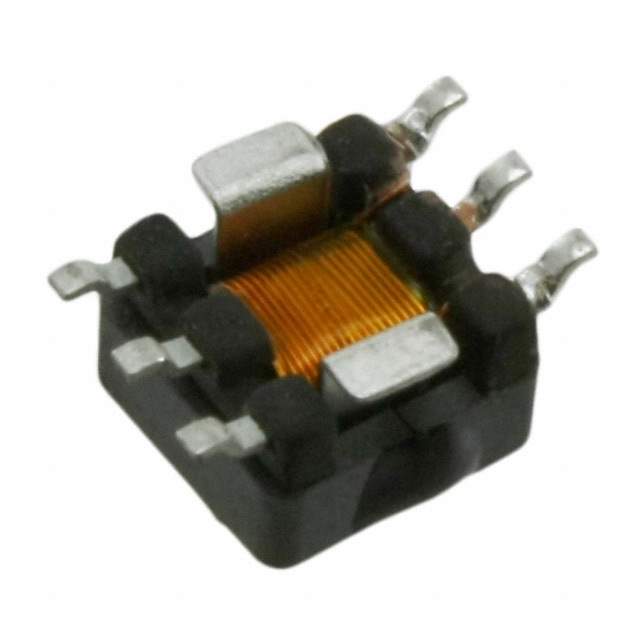

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Frequency Range 50kHz to 1MHz
Type Invasive
Inductance 80μH
DC Resistance (DCR) 6 mOhm Primary, 550 mOhm Secondary
Mounting SMD (SMT)
Height - Seated (Max) 0.217" (5.50mm)
Termination Style Gull Wing
Win Source Part Number 1086120-P8202NLT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian P8202NLT CAD Model

Description

The Pulse Electronics Corporation transformer 1086120-P8202NLT is an active component in the category of transformers.

  • Manufacturer: Pulse Electronics Corporation
  • Component Category: transformers
  • Mounting Type: invasive
  • Termination Style: gull wing
  • Family: Transformers
