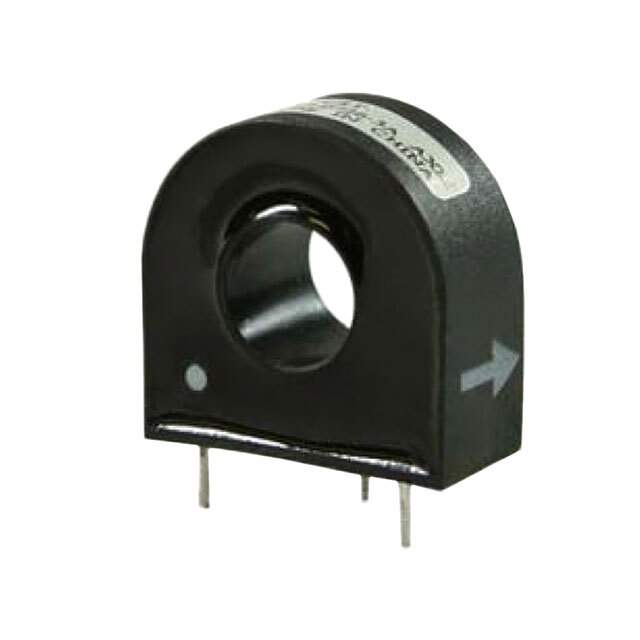

CST-1020-B Real Image
Same model may have multiple batches, images only for reference.

CST-1020-B

Part No CST-1020-B
Manufacturer Triad Magnetics
Catalog Current Sense Transformers
Description CURR SENSE XFMR 20A T/H / 20 A Current Sense Transformer 50/60Hz 40Ohm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Triad Magnetics
Series CST
Package Tray
Frequency Range 50/60Hz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 20 A
DC Resistance (DCR) 40Ohm
Mounting Type Through Hole
Dimension 0.925" L x 0.472" W (23.50mm x 12.00mm)
Height - Seated (Max) 0.976" (24.80mm)
Termination Style PC Pin
Weight 0.044 lb (19.96 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Standard Package 56
Win Source Part Number 1053027-CST-1020-B
Ultra Librarian 3D Model Ultra Librarian CST-1020-B CAD Model

Description

The Triad Magnetics CST-1020-B is a current sense transformer that is non-invasive with a solid core.

  • Win Source Part Number: 1053027-CST-1020-B
  • Series: CST
  • Termination Style: PC pin
  • Package: Tray
  • Height Seated: 0.976 inches or 24.80mm
  • Frequency Range: 50/60Hz
  • Weight: 0.044 lb or 19.96g
  • Mounting Type: Through-hole
  • DC Resistance: 40Ohm
  • Dimension: 0.925 inches L x 0.472 inches W or 23.50mm x 12.00mm
  • REACH: REACH unaffected
