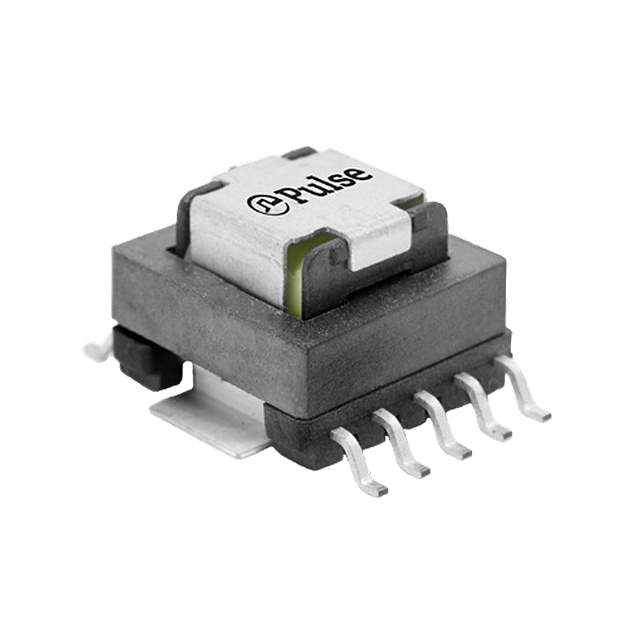

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 15 Weeks
Manufacturer Pulse
Series PB002XNL
Package Reel - TR
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 553-3825-2, PB0027NLT-ND, 553-3825-1, 553-3825-6
Quantity per package 200
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888573-PB0027NLT
Ultra Librarian 3D Model Ultra Librarian PB0027NLT CAD Model

Description

The Pulse PB0027NLT transformer is a surface mount transformer that comes in a reel - TR package. Pulse manufactures it.

  • Series: PB002XNL
  • Mounting Type: Surface Mount
  • Package: Reel - TR
  • Win Source Part Number: 888573-PB0027NLT
  • ECCN: EAR99
  • Popularity: Medium
  • Estimated Production Lead Time: 15 weeks
  • Quantity per Package: 200
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.31.2000
