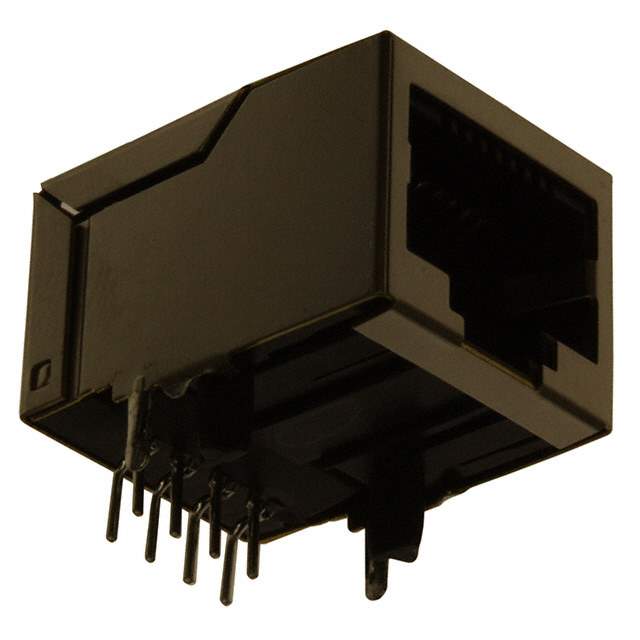

J0026D01NL Real Image
Same model may have multiple batches, images only for reference.

J0026D01NL

Part No J0026D01NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX
Datasheet
J0026D01NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Does Not Contain LED
Number of Cores per Jack 5
Shielding Shielded
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number J0026D01NL-ND,553-1487
Standard Package 30
Win Source Part Number 1333947-J0026D01NL
Ultra Librarian 3D Model Ultra Librarian J0026D01NL CAD Model

Description

The 1333947-J0026D01NL is a modular connector jack with magnetics from Pulse Electronics.

  • Orientation: Right Angle
  • Shielding: Shielded
  • Connector Type: RJ45
  • Termination Style: Solder
  • Number of Ports: 1
  • Package: 30
  • Housing Material: Thermoplastic
  • Height Above Board: 0.545" (13.84mm)
  • LED: No LED
  • Number of Cores per Jack: 5
  • Tab Direction: Down
  • Temperature Range: 0°C to 70°C
  • Applications: 10/100 Base-TX
