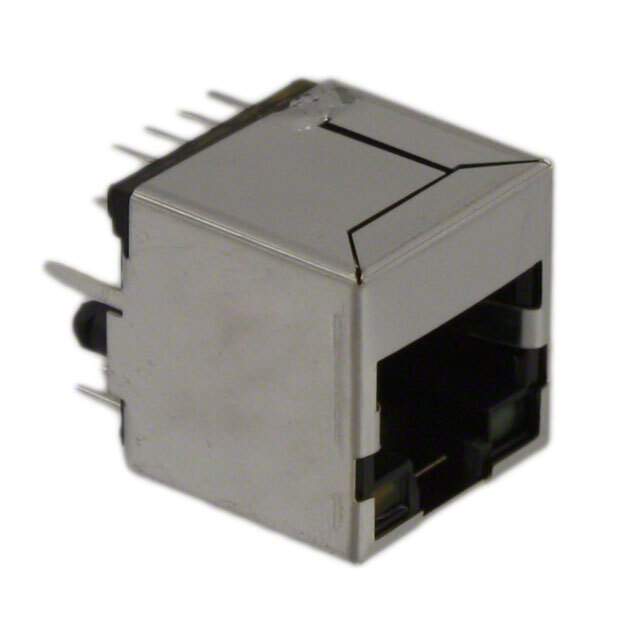

SI-46001-F Real Image
Same model may have multiple batches, images only for reference.

SI-46001-F

Part No SI-46001-F
Manufacturer Stewart Connector
Catalog Modular Connectors
Description CONN MAGJACK 1PORT 100 BASE-T / SI-46001-F
Datasheet
SI-46001-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Stewart Connector
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Style Through Hole
Orientation Vertical
Termination Solder
Height Above Board 0.670" (17.02mm)
LED Color Yellow - Green
Number of Cores per Jack 4
Shielding Shielded
Features Board Lock
Tab Direction User Selectable
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 50.0μin (1.27μm)
Shield Material Copper Alloy
Housing Material Thermoplastic
Manufacturer Pack Quantity 80
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801884-SI-46001-F
Ultra Librarian 3D Model Ultra Librarian SI-46001-F CAD Model

Description

The 801884-SI-46001-F is a shielded RJ45 connector with through-hole mounting style and board lock feature from Stewart Connector.

  • Contact Material: Copper Alloy
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Applications: 10/100 Base-T, AutoMDIX
  • Orientation: Vertical
  • Tab Direction: User-Selectable
  • LED Color: Yellow-Green
  • Ports: 1
  • Height Above Board: 0.670" (17.02mm)
  • Housing Material: Thermoplastic
  • Packaging: Tray
  • Manufacturer Pack Quantity: 80
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (Unlimited)
