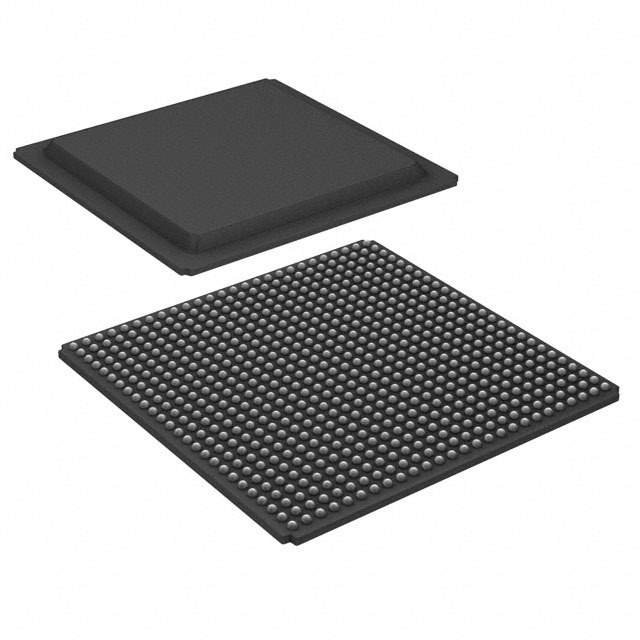

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>System On Chip (SoC)
Mfr Amd
Series Zynq®-7000
Package Tray
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
Flash Size -
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 1GHz
Primary Attributes Kintex™-7 FPGA, 350K Logic Cells
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 676-BBGA, FCBGA
Supplier Device Package 676-FCBGA (27x27)
Number of I/O 130
Base Product Number XC7Z045
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Standard Package 1 pcs
Win Source Part Number 1383892-XC7Z045-3FFG676E
Ultra Librarian 3D Model Ultra Librarian XC7Z045-3FFG676E CAD Model

Description

The Amd 1383892-XC7Z045-3FFG676E is a system-on-chip (SoC) from the Zynq-7000 series.

  • Processor: Dual ARM Cortex-A9 MPCore™ with CoreSight™
  • Processor Speed: 1GHz
  • Package: Tray
  • Standard Package: 1 piece
  • Connectivity: CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
  • Peripherals: DMA
  • Number of I/Os: 130
  • RAM Size: 256KB
  • FPGA: Kintex-7 FPGA with 350K logic cells
  • Package: 676-BBGA, FCBGA
  • Mounting Type: Surface Mountable
  • Operating Temperature: 0°C to 100°C
