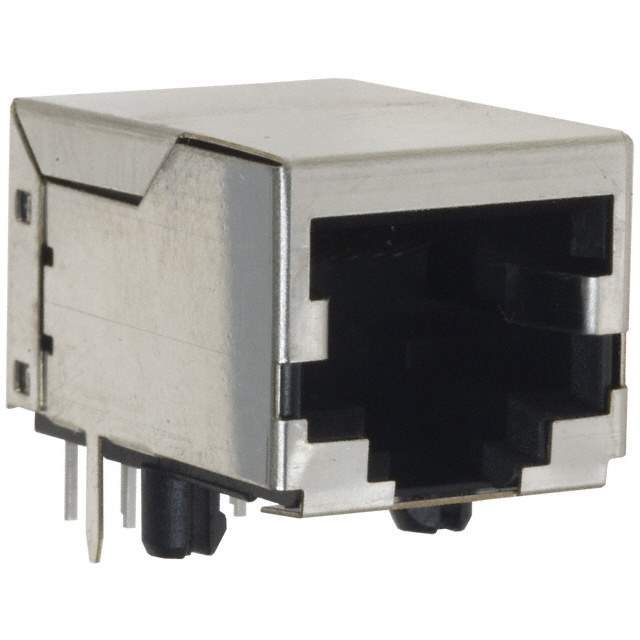

Same model may have multiple batches, images only for reference.

SS-641010S-A-NF

Name: SS-641010S-A-NF
Brand: Stewart Connector
SKU: 795432
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SS-641010S-A-NF
Manufacturer	Stewart Connector
Catalog	Modular Connectors
Description	CONN MOD JACK 10P10C R/A SHLD / Conn RJ-45 RCP 10 POS 2.54mm Solder RA Thru-Hole 10 Terminal 1 Port
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Stewart Connector
Series	64
Packaging	Tray
Connector Type	Jack
Number of Positions/Contacts	10p10c (RJ50)
Number of Ports	1
Number of Rows	1
Mounting Style	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Shielding	Shielded
Features	Board Lock
LED Color	Does Not Contain LED
Tab Direction	Down
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	30μin (0.76μm)
Housing Material	Thermoplastic
Operating Temperature Range	-40°C ~ 85°C
Win Source Part Number	795432-SS-641010S-A-NF
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SS
Introduction Date	December 04, 2006
ECCN	EAR99
Country of Origin	United States of America
Halogen Free	Not Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian SS-641010S-A-NF CAD Model

Alternative Products

Description

The Stewart Connector 795432-SS-641010S-A-NF is a shielded jack connector with a 90° angle (right) orientation from Stewart Connector.

Orientation: 90° angle (right)
Mounting Style: Through-hole
Board Lock Feature: Yes
Contact Finish: Gold
Contact Finish Thickness: 30μin (0.76μm)
Number of Positions/Contacts: 10p10c (RJ50)
Applications: Various
Estimated EOL Date: 2027
