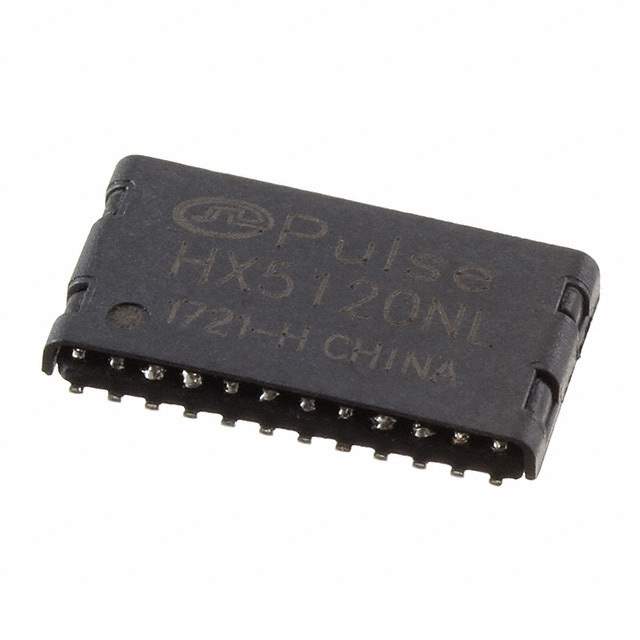

The HX5120NLT is a surface mount, low profile Ethernet transformer from Pulse Electronics. It is designed to provide signal isolation and impedance matching for Ethernet applications. This transformer is commonly used in network interface cards (NICs), routers, switches, and other networking devices. It adheres to industry standards for performance and reliability.

Applications

• Network Interface Cards (NICs)
• Routers
• Switches
• Hubs
• Embedded Ethernet Devices

Features

• Surface Mount Design: Facilitates automated assembly and reduces board space.
• Low Profile: Minimizes height requirements in compact devices.
• IEEE 802.3 Compliance: Meets industry standards for Ethernet performance.
• High Isolation Voltage: Provides electrical isolation between the Ethernet PHY and the network.
• Optimized Impedance Matching: Ensures efficient signal transfer and minimizes signal loss.
• RoHS Compliant: Meets environmental standards for lead-free manufacturing.

Benefits

• Reliable Ethernet Connectivity: Ensures stable and consistent network performance.
• Compact Design: Enables smaller and more efficient networking devices.
• Easy Integration: Simplifies the design and manufacturing process.
• Enhanced Safety: Provides electrical isolation for improved safety.
• Environmentally Friendly: Complies with RoHS standards.

Technical Specifications

The HX5120NLT typically supports data rates up to 100 Mbps (Fast Ethernet). It features a specific turns ratio to match the impedance between the PHY and the network cable. The isolation voltage is typically 1500 Vrms. The operating temperature range is typically from 0°C to +70°C. Refer to the Pulse Electronics datasheet for precise specifications.
