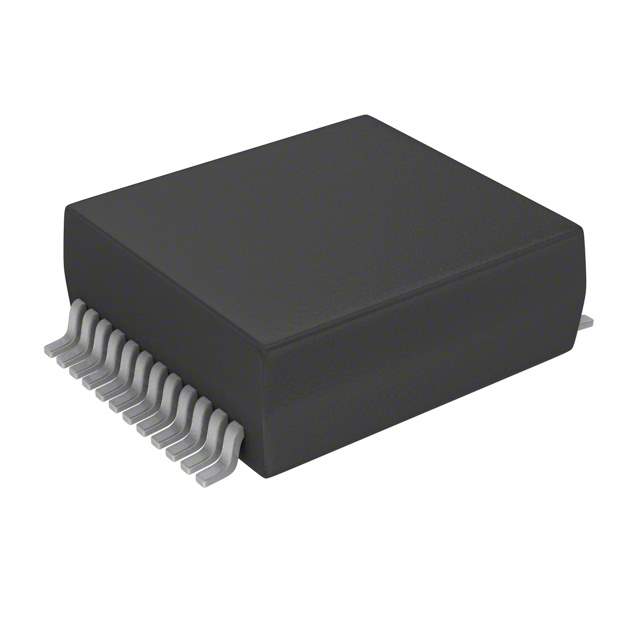

HX5004ENL Real Image
Same model may have multiple batches, images only for reference.

HX5004ENL

Part No HX5004ENL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1 CT:1CT TX/RX 350UH
Datasheet
HX5004ENL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000595-HX5004ENL
Win Source Part Number Cross
Manufacturer Pulse Electronics
Category Transformers Pulse Transformers
Package Tube
Product Status Active
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.689" L x 0.480" W (17.50mm x 12.20mm)
Height - Seated (Max) 0.225" (5.72mm)
Ultra Librarian 3D Model Ultra Librarian HX5004ENL CAD Model

Description

The LAN 10/100/1000 Base-T transformer by Pulse Electronics is a high-quality transformer that comes in a tube package.

  • Size or Dimension: 0.689" L x 0.480" W (17.50mm x 12.20mm)
  • Inductance: 350µH
  • Mounting: through surface mount
  • Status: Active
