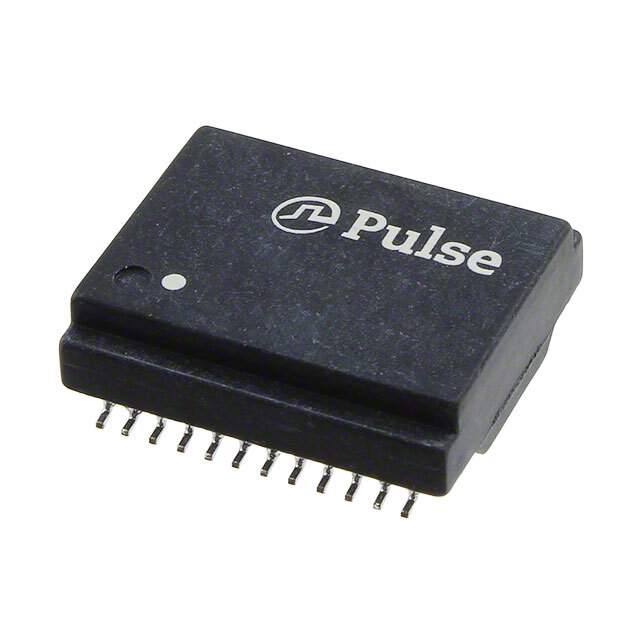

The Pulse H6062FNLT is a high-performance pulse transformer designed for various applications, including signal isolation, impedance matching, and voltage transformation. Manufactured by Pulse Electronics, this transformer is known for its reliability and efficiency in demanding environments.

Applications:

• Isolated Power Supplies: Used in isolated power supplies to provide galvanic isolation between the primary and secondary sides.
• Gate Driver Circuits: Employed in gate driver circuits for IGBTs and MOSFETs to provide isolated gate drive signals.
• Communication Interfaces: Integrated into communication interfaces such as Ethernet and CAN bus for signal isolation and impedance matching.
• Current Sensing Applications: Used for isolated current sensing in various power electronic applications.
• DC-DC Converters: Applied in DC-DC converters to provide voltage transformation and isolation.

Features:

• High Isolation Voltage: Provides high isolation voltage between the primary and secondary windings, ensuring safety and preventing ground loops.
• Low Leakage Inductance: Offers low leakage inductance, minimizing switching losses and improving efficiency.
• Compact Package: Features a compact package, allowing for high-density mounting on printed circuit boards.
• Wide Operating Temperature Range: Designed to operate over a wide temperature range, ensuring reliable performance in various environments.
• RoHS Compliant: Complies with RoHS directives, ensuring environmental friendliness.

Benefits:

• Enhanced Safety: High isolation voltage ensures safe operation in high-voltage environments.
• Improved Efficiency: Low leakage inductance minimizes switching losses, improving overall efficiency.
• Reduced EMI: Shielded construction reduces electromagnetic interference (EMI).
• Space Saving: Compact package allows for smaller and more efficient designs.
• Reliable Performance: Designed for reliable performance in demanding applications.

The H6062FNLT is constructed with high-quality materials to ensure long-term reliability and performance. It's designed to meet stringent industry standards for safety and performance. The specific inductance, turns ratio, and other electrical characteristics can be found on the Pulse Electronics datasheet for proper design implementation. It is suitable for automated pick-and-place assembly processes.
