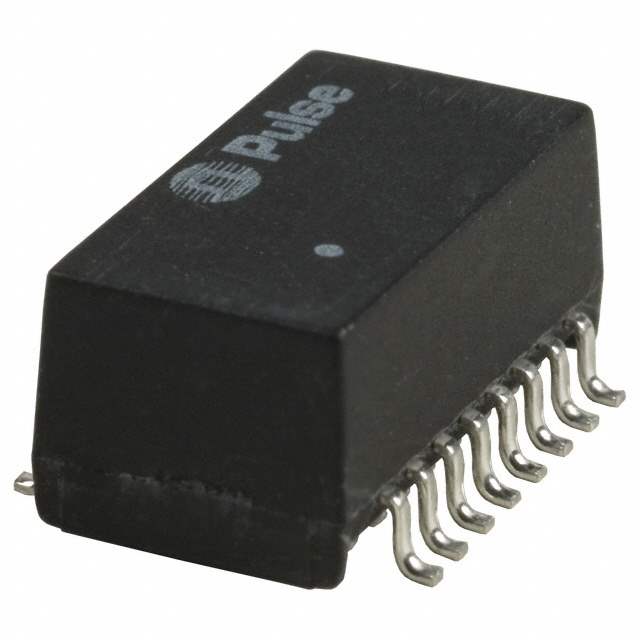

HX1198NLT Real Image
Same model may have multiple batches, images only for reference.

HX1198NLT

Part No HX1198NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR MAGNETIC 1PORT 1:1 10/100
Datasheet
HX1198NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Weight 0.03 oz (0.85g)
Win Source Part Number 001720-HX1198NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HX1198
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian HX1198NLT CAD Model

Description

The 001720-HX1198NLT from Pulse Electronics Corporation is an isolation and data interface (encapsulated) transformer that comes in reel - TR packaging. It is an SMD (SMT) mounting type and has a height of 0.245" (6.22mm). This transformer is a part of the HX1198 family and falls under the category of transformers. It is currently active in the market with high popularity. This product is a common-used part and has an estimated EOL date of 2026.
