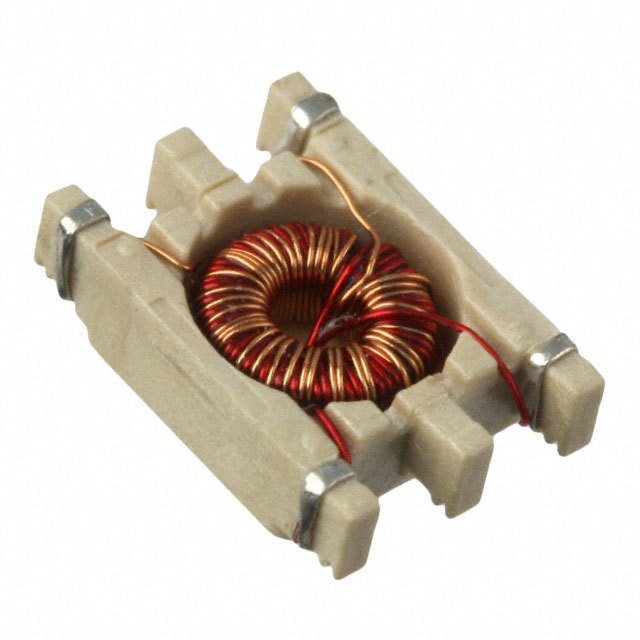

PE-68386NLT Pulse
Same model may have multiple batches, images only for reference.

PE-68386NLT

Part No PE-68386NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 785UH / 785μH Pulse Transformer 1:1 Surface Mount
Datasheet
PE-68386NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Inductance 785µH
ET (Volt-Time) 9.7VµS
Mounting Type Surface Mount
Size / Dimension 0.340" L x 0.265" W (8.64mm x 6.73mm)
Height - Seated (Max) 0.098" (2.49mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 272262-PE-68386NLT
Ultra Librarian 3D Model Ultra Librarian PE-68386NLT CAD Model

Description

The 272262-PE-68386NLT is a pulse transformer designed for use in electronic devices.

  • Packaging: Tape & reel
  • Size: 0.340" L x 0.265" W (8.64mm x 6.73mm)
  • Inductance: 785μH
  • Height (Seated): 0.098" (2.49mm)
  • Mounting: Surface mountable
  • Operating Temperature: -40°C to 130°C
  • Manufacturer: Pulse
  • Status: Active
  • ECCN: EAR99 compliant
  • REACH: Unaffected
  • Applications: Various electronic applications
