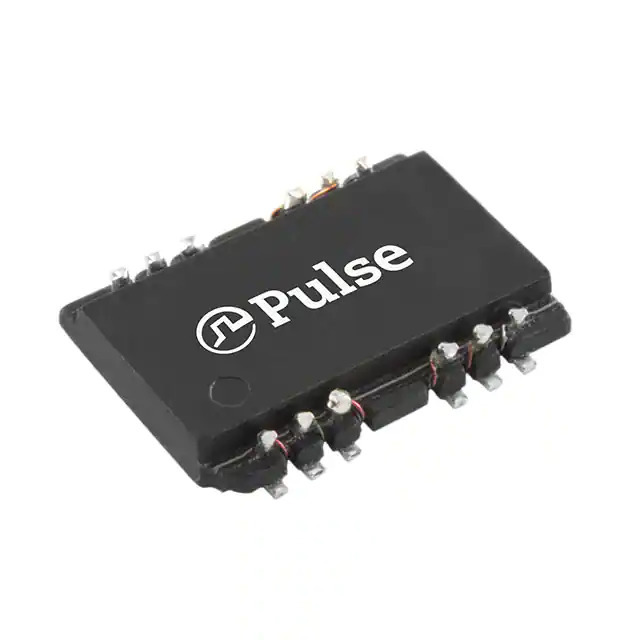

HM0068ANL Pulse
Same model may have multiple batches, images only for reference.

HM0068ANL

Part No HM0068ANL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet
HM0068ANL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse Electronics
Series -
Package Tube
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.347" W (12.70mm x 8.81mm)
Height - Seated (Max) 0.082" (2.08mm)
Temperature Range - Operating -40°C ~ 105°C
Weight -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1370276-HM0068ANL
Ultra Librarian 3D Model Ultra Librarian HM0068ANL CAD Model

Description

The HM0068ANL is a pulse transformer designed for LAN 10/100 Base-T applications.

  • Application: LAN 10/100 Base-T
  • Inductance: 350μH
  • Mounting Type: Surface Mount
  • Size: 0.500" L x 0.347" W (12.70mm x 8.81mm)
  • Height: 0.082" (2.08mm) max
  • Temperature Range: -40°C to 105°C
  • ECCN: Compliant
  • REACH: Unaffected
  • Product Status: Active
