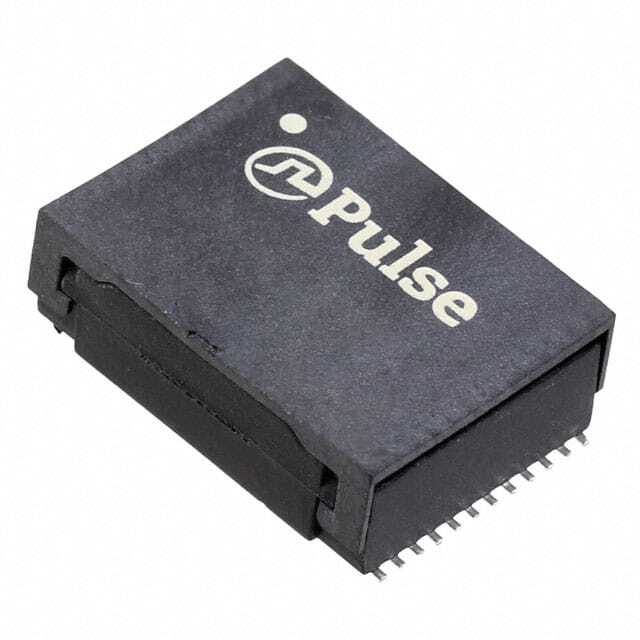

HX5008FNLT
Same model may have multiple batches, images only for reference.

HX5008FNLT

Part No HX5008FNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1 TX 1CT:1 RX
Datasheet
HX5008FNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 325µH
Mounting Type Surface Mount
Size / Dimension 0.518" L x 0.703" W (13.16mm x 17.86mm)
Height - Seated (Max) 0.241" (6.12mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 350 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 846294-HX5008FNLT
Ultra Librarian 3D Model Ultra Librarian HX5008FNLT CAD Model

Description

The 846294-HX5008FNLT is a pulse transformer designed for use in transformers in pulse applications.

  • Category: Transformers - Pulse Transformers
  • Application: LAN 10/100/1000 Base-T
  • Size / Dimension: 0.518" L x 0.703" W (13.16mm x 17.86mm)
  • Mounting Type: Surface Mount
  • Inductance: 325µH
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Manufacturer: Pulse
  • Standard Package Quantity: 350 pcs
  • REACH Status: Unaffected
  • ECCN: EAR99
