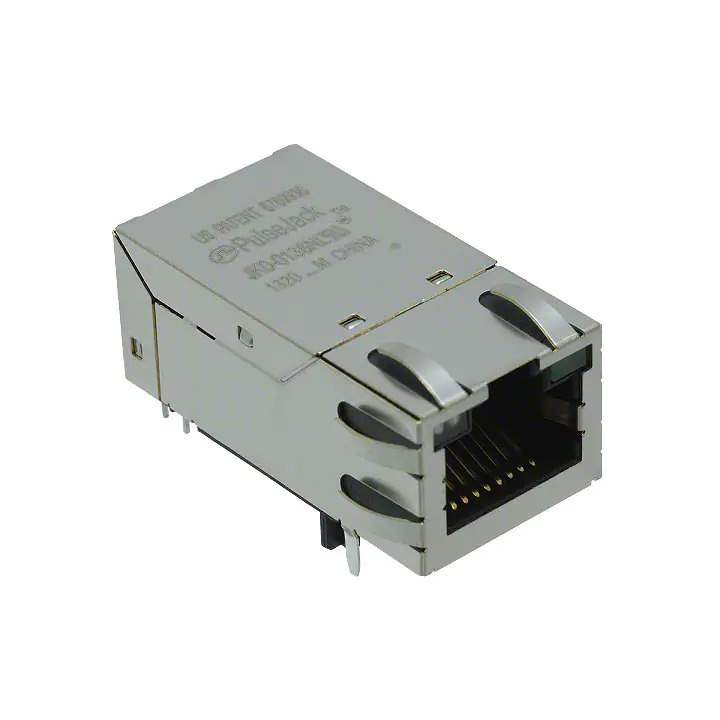

The 876199-JK0-0136NL is a modular connector jack with magnetics manufactured by Pulse.

• Manufacturer: Pulse
• Product Name: 876199-JK0-0136NL
• Category: Connectors, Interconnects - Modular Connectors
• Series: PULSEJACK™ JK0
• Feature: Board Guide
• Connector Type: RJ45
• Row: Single
• Termination: Solder
• Contact Finish: Gold
• Contact Finish Thickness: 30.0µin (0.76µm)
• Packaging: Tray
• Height Above Board: 0.546" (13.87mm)
• Shielding: Shielded with EMI finger
• Housing Material: Thermoplastic
• Applications: 10/100/1000 Base-T and AutoMDIX
• Angle Orientation: 90° angle (right)
• Port: Single
• Standard Package: 45 pieces
• LED Color: Yellow and Green
• Number of Cores per Jack: 8
• Tab Direction: Up
• Shield Material: Brass
• Mounting: Through-hole
• Operating Temperature Range: 0°C to 70°C
• ECCN: EAR99
• MSL: 1 (Unlimited)
• REACH Status: Unaffected
