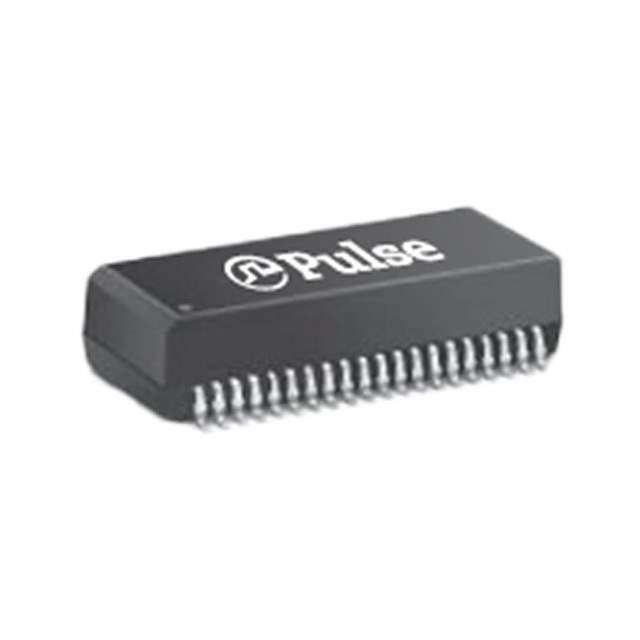

HX1259NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer Pulse Electronics
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Surface Mount
Size / Dimension 1.110" L x 0.480" W (28.19mm x 12.19mm)
Height - Seated (Max) 0.235" (5.97mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.17 oz (4.84 g)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number HX1259NL-ND,553-3247-5,-HX1259NL
Standard Package 15
Win Source Part Number 1330513-HX1259NL
Ultra Librarian 3D Model Ultra Librarian HX1259NL CAD Model

Description

The Pulse Electronics 1330513-HX1259NL is a pulse transformer that is encapsulated and designed to be used in isolation and data interface applications.

  • Application: Isolation and Data Interface
  • Size: 1.110" L x 0.480" W (28.19mm x 12.19mm)
  • Packaging: Tube
  • Inductance: None
  • Height Seated: 0.235" (5.97mm)
  • Operating Temperature: -40°C to 85°C
  • RoHS Compliant: Yes
  • Weight: 0.17 oz (4.84 g)
  • Mounting Type: Surface Mount
  • Standard Package: 15
  • Suitable For: Modems, Routers, and Switches
