Same model may have multiple batches, images only for reference.

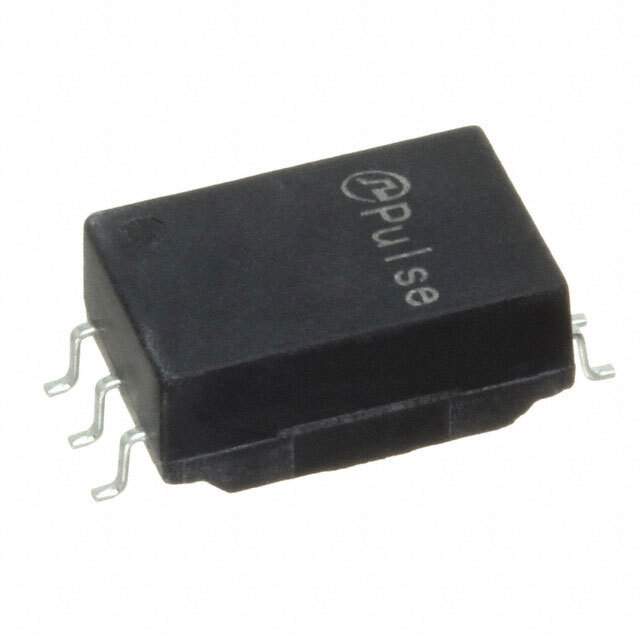

HM2106NLT Real Image
Same model may have multiple batches, images only for reference.

HM2106NLT

Part No HM2106NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description MDL, SIN, XFMR, 1:1, 4.3KV, SMT,  /  135µH Pulse Transformer 1:1 Surface Mount
Datasheet
HM2106NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Inductance 135µH
Mounting SMD (SMT)
Dimension 0.335" L x 0.524" W (8.50mm x 13.31mm)
Height - Seated (Max) 0.226" (5.75mm)
Temperature Range - Operating -40°C ~ 125°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 1840-HM2106NLTCT,1840-HM2106NLTTR,HM2106NLT-ND,1840-HM2106NLTDKR
Standard Package 600
Win Source Part Number 971793-HM2106NLT
Ultra Librarian 3D Model Ultra Librarian HM2106NLT CAD Model

Description

The HM2106NLT pulse transformer from Pulse Electronics Network is a surface mount device (SMD) mountable transformer with an inductance of 135μH.

  • Height Seated (Max): 5.75mm
  • Packaging: Tape and Reel
  • Product ECCN: EAR99
  • HTSUS Code: 8504.31.2000
  • Temperature Range: -40°C to 125°C
  • Series: HM2106NLT
