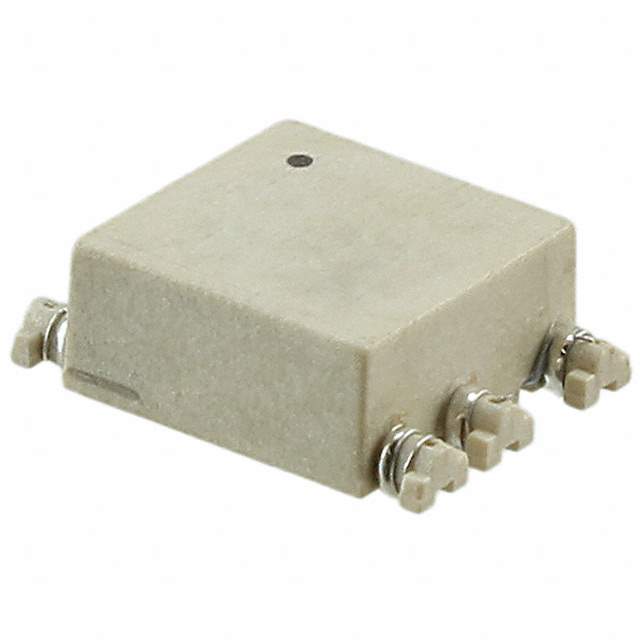

PA2005NLT Real Image
Same model may have multiple batches, images only for reference.

PA2005NLT

Part No PA2005NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1:1 840UH  /  840µH Pulse Transformer 1:1:1 Surface Mount
Datasheet
PA2005NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Power
Package Tape & Reel
Inductance 840µH
ET (Volt-Time) 26VµS
Mounting SMD (SMT)
Dimension 0.340" L x 0.460" W (8.64mm x 11.68mm)
Height - Seated (Max) 0.160" (4.06mm)
Temperature Range - Operating -40°C ~ 130°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names PA2005NLT-ND,553-1995-6,553-1995-2,553-1995-1
Standard Package 900
Win Source Part Number 966270-PA2005NLT
Ultra Librarian 3D Model Ultra Librarian PA2005NLT CAD Model

Description

The Pulse Electronics Power PA2005NLT is a pulse transformer with a package of tape and reel.

  • Inductance: 840µH
  • Height: 0.160" (4.06mm)
  • Standard Package: 900
