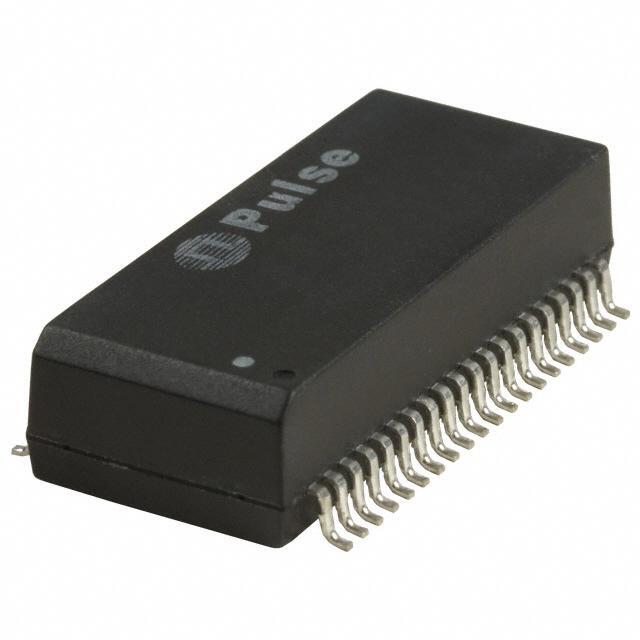

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN 10/100 Base-T
Mounting Type Surface Mount
Size / Dimension 1.125" L x 0.480" W (28.58mm x 12.19mm)
Height - Seated (Max) 0.230" (5.84mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 250 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 139665-H1164T
Ultra Librarian 3D Model Ultra Librarian H1164T CAD Model

Description

The 139665-H1164T is a pulse transformer designed for LAN 10/100 Base-T applications. It belongs to the Transformers - Pulse Transformers category and comes in a tape & reel package. With a size of 1.125" L x 0.480" W (28.58mm x 12.19mm) and a height of 0.230" (5.84mm), it is suitable for integration into circuit boards. The 139665-H1164T has a surface mount mounting type and can operate in a temperature range of 0°C to 70°C. It is an obsolete product and comes in a standard package of 250 pieces. It has an ECCN of EAR99 and is unaffected by REACH regulations. The HTSUS code for this pulse transformer is 8504.31.2000. Manufactured by Pulse, the 139665-H1164T is a reliable component for LAN applications.
