The NXP LPC1766FBD100 is a robust and versatile microcontroller that forms part of NXP's LPC1700 series, designed for embedded applications requiring a high level of integration and low power consumption. This microcontroller is based on a 32-bit ARM Cortex-M3 processor core, which operates at a frequency of up to 100 MHz, offering a balanced blend of computing power and energy efficiency.

Key Features

• Core: ARM Cortex-M3 processor, running up to 100 MHz.
• Memory: Equipped with 256 KB of on-chip flash memory and 32 KB of RAM, enabling sophisticated on-board applications and software stacks.
• Digital Peripherals: Includes a variety of digital peripherals such as GPIOs, timers, and UARTs, alongside more complex functionalities like a Motor Control PWM and a Quadrature Encoder interface, making it ideal for industrial control and automation.
• Analog Peripherals: Features an 8-channel 12-bit ADC, along with a 10-bit DAC for analog interfacing, which is critical for sensor applications and analog signal processing.
• Connectivity: Provides multiple serial communication interfaces including USB 2.0 Full-Speed, CAN 2.0B, SPI, I2C, and more, offering excellent connectivity options for various system requirements.

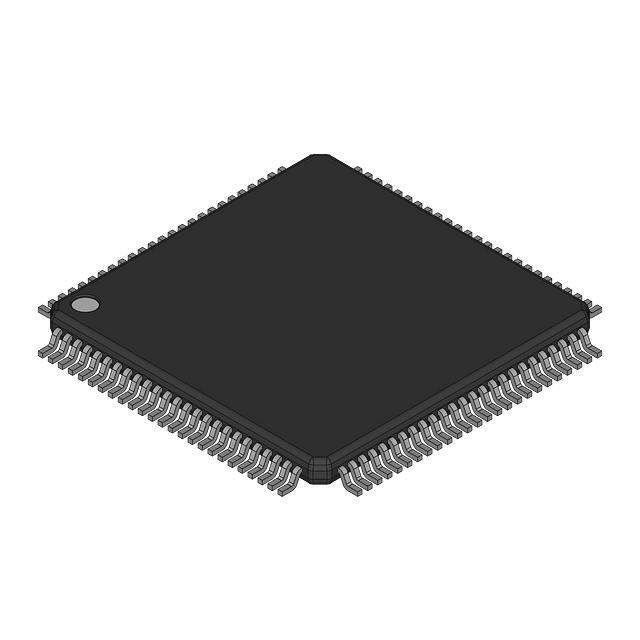

• Package: Available in a compact 100-pin LQFP package, which is ideal for space-constrained applications.
• Power Efficiency: Supports multiple power modes, including an ultra-low power Deep Sleep mode, which significantly reduces power consumption when the MCU is not in active use.

Applications

The LPC1766FBD100 is suitable for a wide range of applications, particularly those requiring a high degree of precision and control, such as industrial automation, robotics, motor control, medical devices, and embedded audio. Its rich set of features and connectivity options also make it a prime choice for smart instrumentation and control panels, as well as communication gateways and protocol converters.

Development Support

NXP supports the LPC1766FBD100 with a comprehensive suite of development tools, including software libraries, development boards, and an integrated development environment (IDE) to streamline the development process. This support ensures that engineers can rapidly prototype and deploy applications built around this microcontroller.
