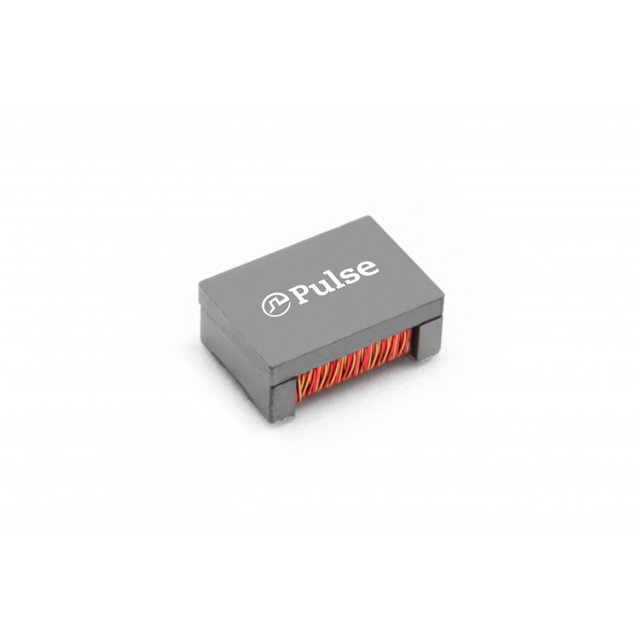

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Pulse Electronics Network
Series AE3003
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 100 µH @ 100 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 1.5Ohm
Voltage Rating - DC 60V
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height (Max) 0.108" (2.75mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 1840-AE3003TR,1840-AE3003CT,1840-AE3003DKR
Standard Package 2,000
Win Source Part Number 1000050-AE3003
Ultra Librarian 3D Model Ultra Librarian AE3003 CAD Model

Description

The Pulse AE3003 common mode choke is a filter designed for use in various electronic applications.

  • Temperature Range: -40°C to 125°C
  • Mounting: Surface mount
  • Packaging: Tape and reel
  • Standard Package: 2000
  • Category: Filter
  • ECCN: EAR99
  • HTSUS Code: 8548.00.0000
