Same model may have multiple batches, images only for reference.

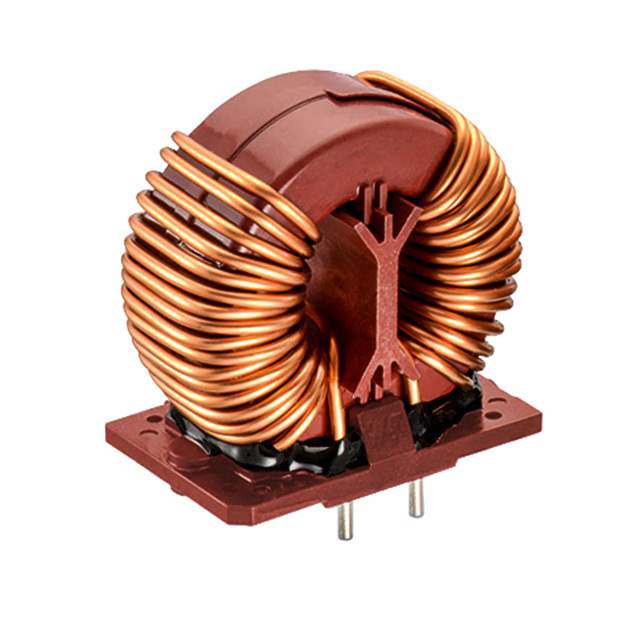

744830017132 Real Image
Same model may have multiple batches, images only for reference.

744830017132

Part No 744830017132
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1.7MH 13.2A 2LN TH / 1.7 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 13.2A DCR 10mOhm
Datasheet
744830017132 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Würth Elektronik
Series WE-CMB HV
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.7 mH @ 10 kHz
Current Rating (Max) 13.2A
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - AC 760V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 1.575" Dia x 0.906" W (40.00mm x 23.00mm)
Height (Max) 1.555" (39.50mm)
Package / Case Vertical, 4 PC Pin
Standard Package 12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1351245-744830017132
Ultra Librarian 3D Model Ultra Librarian 744830017132 CAD Model

Description

The WE-CMB HV series common mode choke is a power line filter type component that has a voltage rating of 760V AC from Würth Elektronik.

  • Type: Power Line Filter
  • Voltage Rating: 760V AC
  • Current Rating: 13.2A
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 4 PC Pin
  • Inductance: 1.7 mH @ 10 kHz
  • DC Resistance (DCR): 10 mOhm max.
  • Application: Filters, Common Mode Suppression
  • Moisture Resistant: Yes
  • Temperature Range: -40°C to 125°C
