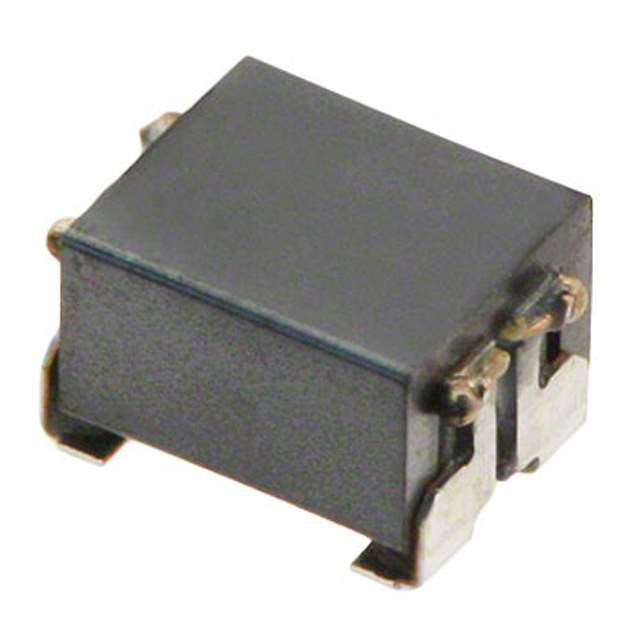

B82789C513N1 Real Image
Same model may have multiple batches, images only for reference.

B82789C513N1

Part No B82789C513N1
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 51UH 250MA 2LN SMD AEC-Q200
Datasheet
B82789C513N1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Series B82789
Packaging Reel package
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 51μH @ 100kHz
Current Rating (Maximum) 250mA
DC Resistance (DCR) (Maximum) 550 mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Operating Temperature Range -55°C ~ 125°C
Ratings AEC-Q200
Mounting SMD
Dimension 0.205" L x 0.126" W (5.20mm x 3.20mm)
Height (Maximum) 0.118" (3.00mm)
Package Horizontal, 4 L-Lead
Win Source Part Number 769585-B82789C513N1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82789C513N1 CAD Model

Description

The B82789 series filter, manufactured by EPCOS (TDK), is a horizontal, 4 L-Lead packaged, SMD mounted electronic component.

  • Inductance: 51μH @ 100kHz
  • Voltage Rating: 42V AC, 80V DC
  • Current Rating: 250mA
  • DC Resistance (DCR): 550 mOhm Max
  • Series: B82789C513N1
  • Rating: AEC-Q200
  • Dimension: 0.205" L x 0.126" W (5.20mm x 3.20mm)
  • Height: 0.118" (3.00mm)
  • Supply and Demand Status: Limited
