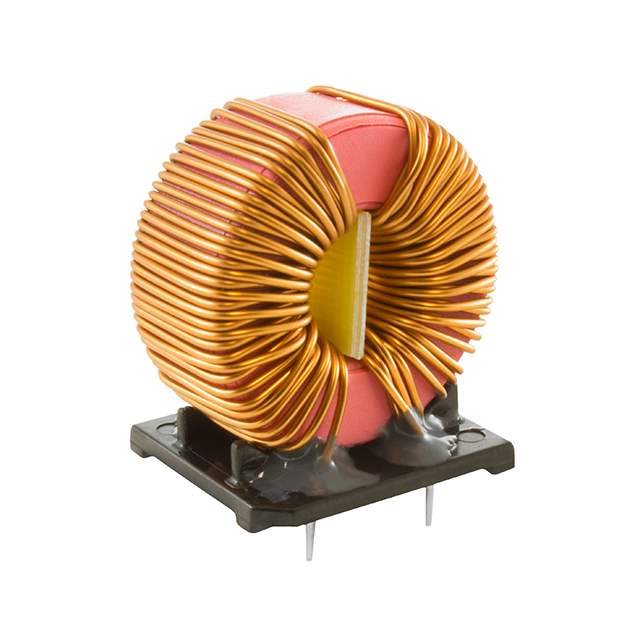

PH9455.105NL

Part No PH9455.105NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 1MH 22A 2LN 1.5K OHM TH / 1 mH @ 15.94 MHz 2 Line Common Mode Choke Through Hole 1.5 kOhms @ 15.94 MHz 22A DCR 2.1mOhm
Datasheet
PH9455.105NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse Electronics
Package Tray
Number of Lines 2
Impedance @ Frequency 1.5 kOhms @ 15.94 MHz
Inductance @ Frequency 1 mH @ 15.94 MHz
Current Rating (Max) 22A
DC Resistance (DCR) (Max) 2.1mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) 1.102" (28.00mm)
Package / Case Vertical, 4 PC Pin
Standard Package 45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1351467-PH9455.105NL
Ultra Librarian 3D Model Ultra Librarian PH9455.105NL CAD Model

Description

The Pulse Electronics PH9455.105NL is a common mode choke filter with a voltage rating of 250V.

  • Voltage Rating: 250V
  • Size / Dimension: 1.181" L x 0.748" W (30.00mm x 19.00mm)
  • Current Rating: 22A
  • Package / Case: Vertical, 4 PC Pin
  • Mounting Type: Through Hole
  • Impedance: 1.5 kOhms @ 15.94 MHz
  • Inductance: 1 mH @ 15.94 MHz
  • Operating Temperature: -40°C ~ 125°C
  • DC Resistance (DCR): 2.1mOhm Max
  • REACH Status: Unaffected
