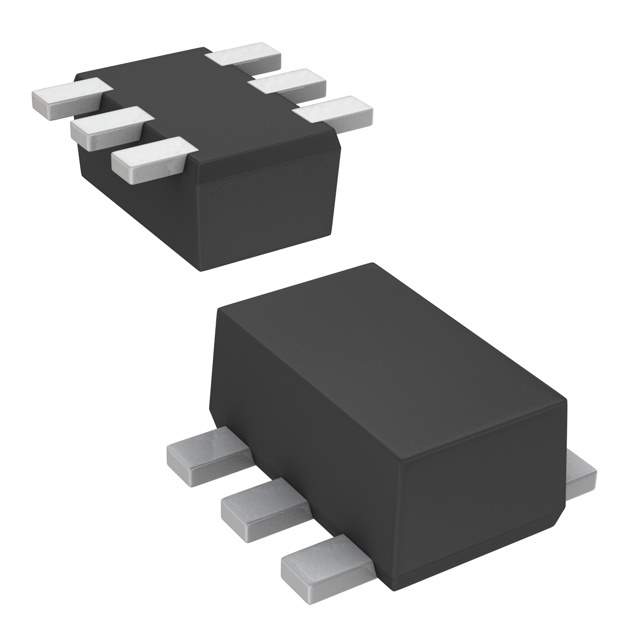

MA6S718-(TX) Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Configuration 3 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 30mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 30mA
Reverse Recovery Time (trr) 1ns
Current - Reverse Leakage @ Vr 1μA @ 30V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package SMini6-F1
Win Source Part Number 073144-MA6S718-(TX)
Ultra Librarian 3D Model Ultra Librarian MA6S718-(TX) CAD Model

Description

The Panasonic Electronic Components MA6S718-(TX) diode is a Schottky diode with a voltage - DC reverse (Vr) (Max) of 30V and a voltage - forward (Vf) (Max) @ If of 1V @ 30mA.

  • Voltage - DC Reverse (Vr) (Max): 30V
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 30mA
  • Reverse Recovery Time (trr): 1ns
  • Current - Reverse Leakage @ Vr: 1μA @ 30V
  • Current - Average Rectified (Io) (per diode): 30mA (DC)
  • Category: Discrete Semiconductor Products
  • Status: Obsolete (EOL) product
  • Case / Package: SMini6-F1
