Same model may have multiple batches, images only for reference.

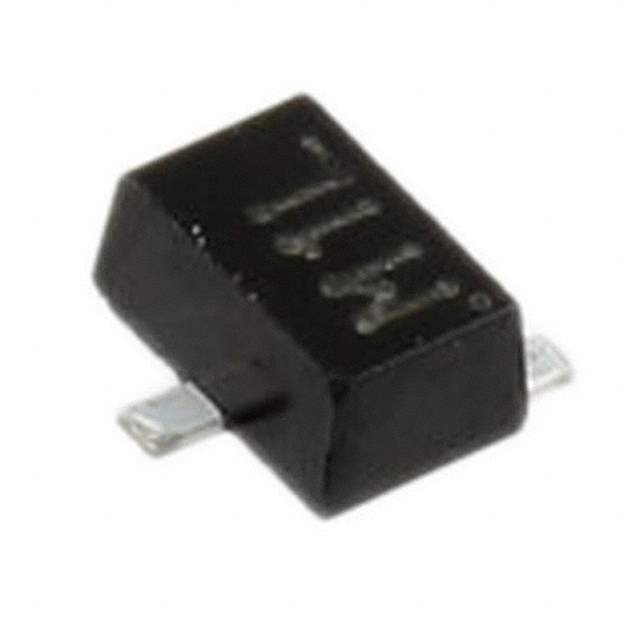

MA3J74100L Real Image
Same model may have multiple batches, images only for reference.

MA3J74100L

Part No MA3J74100L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 30MA SMINI3
Datasheet
MA3J74100L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 30mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 30mA
Reverse Recovery Time (trr) 1ns
Current - Reverse Leakage @ Vr 300nA @ 30V
Capacitance @ Vr, F 1.5pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package SMini3-F1
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1065571-MA3J74100L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MA3J74100L CAD Model

Description

The Panasonic Electronic Components 1065571-MA3J74100L is an obsolete (EOL) Schottky diode with a voltage - DC reverse (Vr) (Max) of 30V. The supply and demand status is balanced, and it has a case/package of SMini3-F1.
