Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features - Motor Driver - SPI 36-SSOP-EP
Manufacturer ON Semiconductor
Series Automotive, AEC-Q100
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Surface Mount
Package 36-BFSOP (0.295", 7.50mm Width) Exposed Pad
Case / Package 36-SSOP-EP
Family Name NCV7705
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN OBSOLETE
Other Part Number NCV7705ADQR2G, NCV7705ADQR2G-ND
Quantity per package 1500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 887151-NCV7705DQR2G
Ultra Librarian 3D Model Ultra Librarian NCV7705DQR2G CAD Model

Description

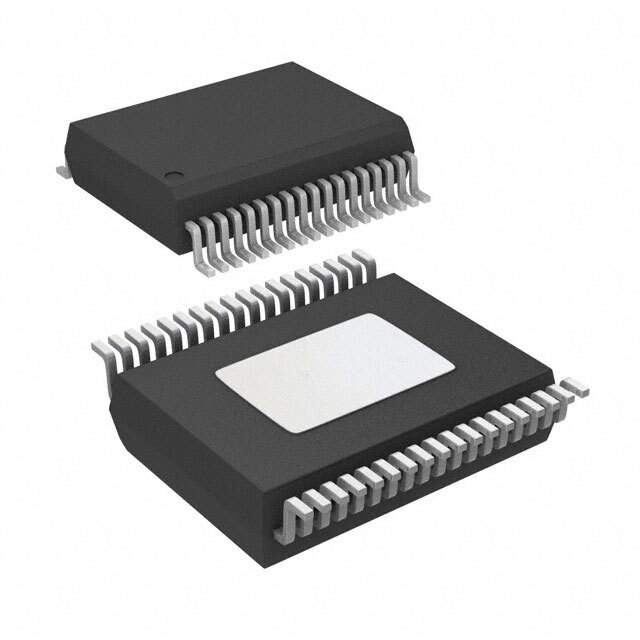

ON Semiconductor NCV7705DQR2G Overview

The NCV7705DQR2G is a versatile and robust integrated circuit designed by ON Semiconductor, a leader in energy-efficient innovations. This product is specifically engineered to cater to the demanding requirements of automotive applications, offering a high level of integration to enable reliable and compact solutions.

Key Features

  • High Integration: The NCV7705DQR2G integrates multiple functions into a single chip, helping to reduce the overall component count and save on PCB space.
  • Automotive Grade: Designed to meet stringent automotive standards, this device is qualified for use in a variety of automotive applications, ensuring reliability and performance under harsh conditions.
  • Wide Voltage Range: It operates over a broad voltage range, accommodating the fluctuations commonly found in automotive power systems.
  • Thermal Protection: The device includes features such as over-temperature shutdown, protecting the IC from potential damage due to overheating.
  • Diagnostic Functions: Built-in diagnostic capabilities enable the detection of system faults, enhancing the safety and reliability of the application.

Applications

The NCV7705DQR2G is well-suited for a wide range of automotive applications, including but not limited to:

  • Body Control Modules
  • Automotive Lighting Systems
  • Engine Management Systems
  • Powertrain Applications

Quality and Reliability

ON Semiconductor's commitment to quality ensures that the NCV7705DQR2G meets the highest standards. The device is AEC-Q100 qualified, which is a critical requirement for automotive integrated circuits, indicating that it has passed rigorous testing for reliability and performance.

Conclusion

The NCV7705DQR2G from ON Semiconductor stands out as a highly integrated, reliable solution for automotive electronics. Its combination of diagnostic features, thermal protection, and compliance with automotive standards makes it an essential component for designers looking to create sophisticated and durable automotive systems.
