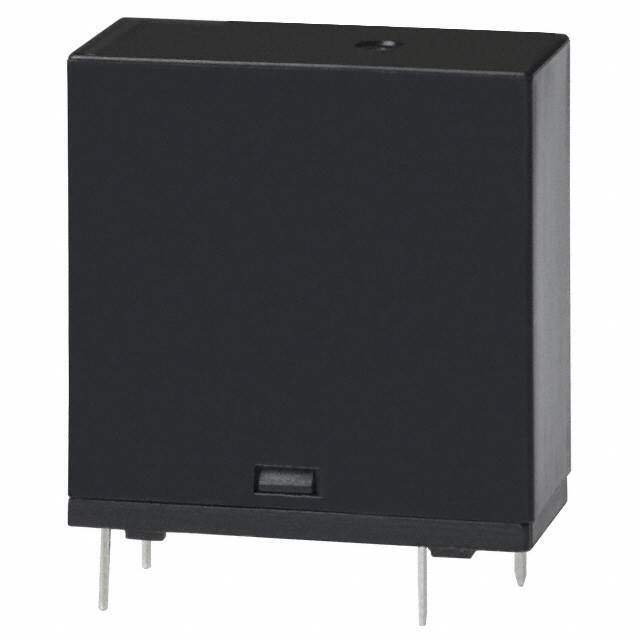

LKS1AF-24V Real Image
Same model may have multiple batches, images only for reference.

LKS1AF-24V

Part No LKS1AF-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 24V
Datasheet
LKS1AF-24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 10.4mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 250 mW
Coil Resistance 2.3 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 206269-LKS1AF-24V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LKS1AF-24V CAD Model

Description

The Panasonic Electric Works LKS1AF-24V is a relay that has a contact form of SPST-NO (1 Form A) and a contact rating of 5A.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 5A
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.3 kOhms
  • Status: obsolete (EOL)
  • Supply and Demand Status: limited
