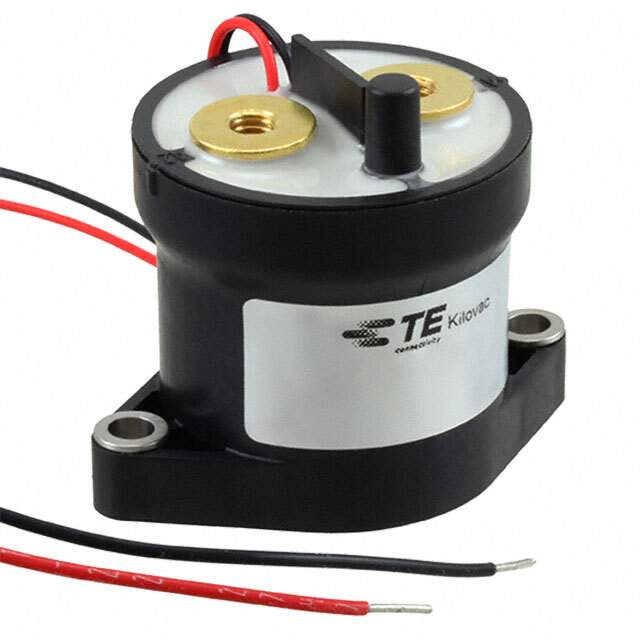

CAP120ASANG Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr TE Connectivity Aerospace, Defense and Marine
Series CAP120, KILOVAC
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 28VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 150 A
Switching Voltage 600VDC - Max
Features Sealed - Hermetically
Termination Style Stud, Wire Leads
Temperature Range - Operating -40°C ~ 85°C
Must Operate Voltage 16 VDC
Must Release Voltage 6 VDC
Operate Time 8 ms
Release Time 5 ms
Coil Current 140 mA
Coil Power 3.9W
Coil Resistance 200Ohms
Base Product Number CAP12
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.49.0065
Other Names CAP120ASANG-ND,2-1618403-6,A124433
Standard Package 1
Win Source Part Number 1005301-CAP120ASANG
Ultra Librarian 3D Model Ultra Librarian CAP120ASANG CAD Model

Description

The CAP120ASANG is a contactor that falls under the category of Relays - Contactors (Electromechanical).

  • Package Type: Bulk
  • Standard Package: 1
  • ECCN: EAR99
  • MSL Level: Not applicable
  • Manufacturer: TE Connectivity Aerospace, Defense and Marine
  • Contact Type: Single pole, single throw (SPST)
  • Contact Rating: 150 A
  • Switching Voltage: 600VDC - Max
  • Coil Voltage: 28VDC
  • Coil Resistance: 200 Ohms
  • Mounting: Chassis mount
  • Temperature Range: -40°C to 85°C
