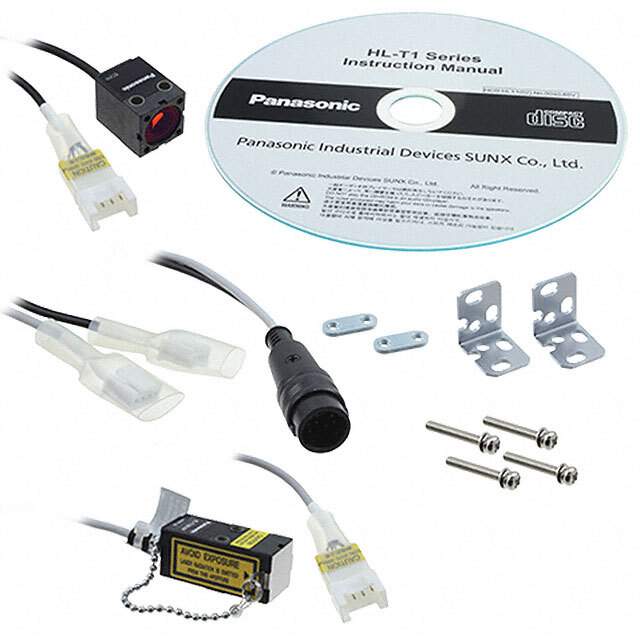

HL-T1001F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photoelectric, Industrial
Mfr Panasonic Industrial Automation Sales
Series HL-T1
Package Box
Sensing Method Reflective, Diffuse
Sensing Distance 19.685" (500mm)
Output Configuration Analog
Light Source Green LED
Connection Method Cable
Cable Length 19.5" (50cm)
Adjustment Type Adjustable
Temperature Range - Operating 0°C ~ 50°C
Base Product Number HL-T1001
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names HL-T1001F-ND,1110-2717
Standard Package 1
Win Source Part Number 1061773-HL-T1001F
Ultra Librarian 3D Model Ultra Librarian HL-T1001F CAD Model

Description

The HL-T1 series photoelectric sensor from Panasonic Industrial Automation Sales is available in a box package and has an adjustable sensing distance of 19.685" (500mm).

  • Package: Box
  • Sensing Distance: Adjustable, 19.685" (500mm)
  • Sensing Method: Reflective, Diffuse
  • Output Configuration: Analog
  • Win Source Part Number: 1061773-HL-T1001F
  • Cable Length: 19.5" (50cm)
  • Light Source: Green LED
  • ECCN: EAR99
  • HTSUS: 8541.49
  • MSL Level: 1 (Unlimited)
  • Alternative Parts: Not applicable
