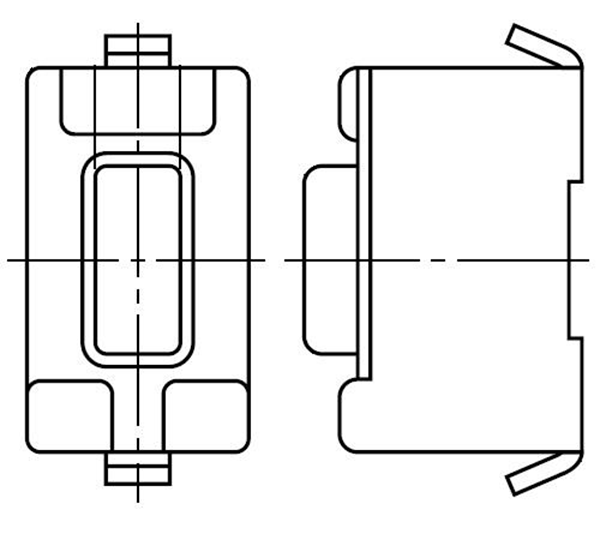

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic
Illuminated Non-Illuminated
Mounting Style SMD/SMT
Mounting Direction Straight
Stem Height 0.8 mm
Actuator Rectangular
Switch Function OFF - (ON)
Operating Force 1.6 N
Current Rating 50 mA
Voltage Rating DC 12 VDC
Ground Terminal No
Contact Form SPST
Termination Style Gull Wing Lead
Color White
Length 6 mm
Width 3.5 mm
Height 4.3 mm
Series EVQPN
Life 50000 Cycle
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Contact Plating Silver
Product Light Touch Switches
Brand Panasonic
Travel 0.25 mm
Maximum Operating Temperature + 85 C
Minimum Operating Temperature - 30 C
Product Type Tactile Switches
Standard Pack Qty 2500
Subcategory Switches
Ultra Librarian 3D Model Ultra Librarian EVQPNF04M CAD Model
