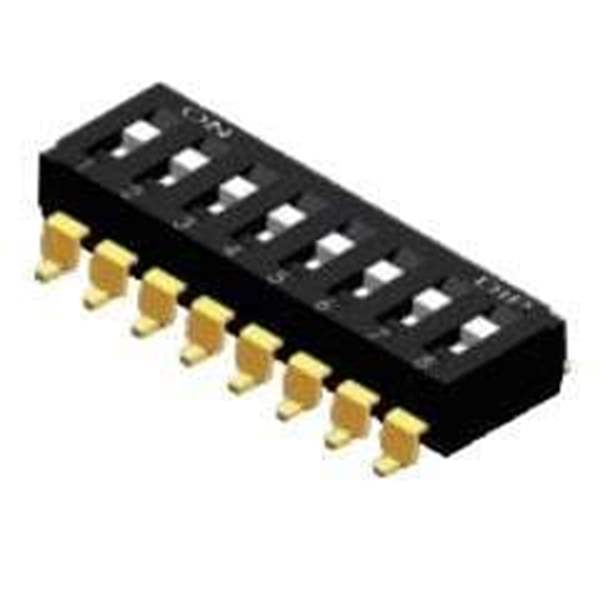

DM-08-V-T/R Diptronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DM-08-V-T/R

Part No DM-08-V-T/R
Manufacturer Diptronics
Catalog Switches
Description DIP Switches / SIP Switches 8 Position, SPST SMD DIP Switch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diptronics
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Illuminated Non-Illuminated
Number of Positions 8 Position
Switch Type DIP
Terminal Pitch 2.54 mm
Contact Form SPST
Termination Style SMD/SMT
Current Rating 25 mA
Voltage Rating DC 24 VDC
Series DM
Brand Diptronics
Mounting Style PCB Mount
Life 2000 Cycle
Maximum Operating Temperature + 85 C
Minimum Operating Temperature - 20 C
Product Type DIP Switches
Standard Pack Qty 700
Subcategory Switches
Ultra Librarian 3D Model Ultra Librarian DM-08-V-T/R CAD Model
