Products specifications

Manufacturer Panasonic
Win Source Part Number 1170918-EEEFK2A220P
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model Ultra Librarian EEEFK2A220P CAD Model

Description

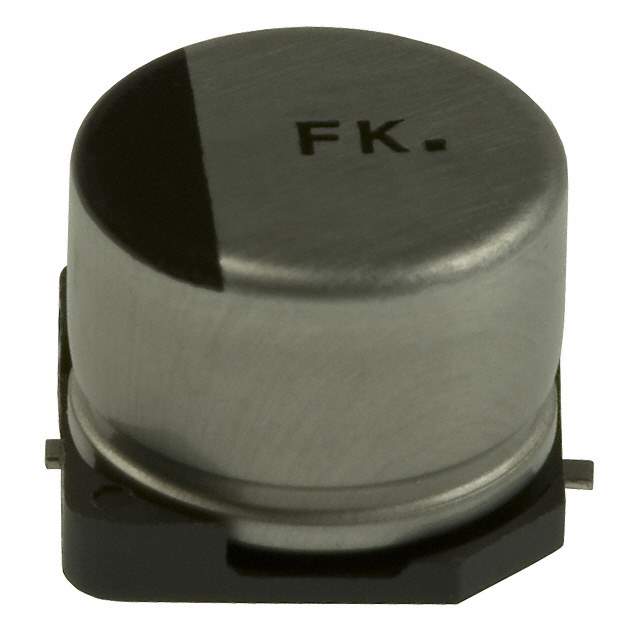

The EEEFK2A220P is an aluminum electrolytic capacitor manufactured by Panasonic. It is part of the FK series, known for its long life and high reliability. This capacitor is designed for use in various electronic circuits that require stable performance and long operational life.

Applications

  • Power supplies
  • Audio amplifiers
  • Industrial equipment
  • Consumer electronics
  • DC-DC converters

Features

  • Capacitance: 22µF
  • Voltage Rating: 100V
  • Operating Temperature Range: -40°C to +85°C
  • Endurance: 5000 hours at 85°C
  • Low ESR (Equivalent Series Resistance)
  • RoHS Compliant

Benefits

  • Long lifespan ensures reliability in demanding applications.
  • High voltage rating makes it suitable for high voltage circuits.
  • Low ESR improves efficiency and reduces heat generation.
  • Wide operating temperature range allows use in various environments.
  • Environmentally friendly due to RoHS compliance.

Additional Details

The EEEFK2A220P is an aluminum electrolytic capacitor with a radial lead configuration for easy PCB mounting. It is typically cylindrical in shape, with dimensions suitable for through-hole mounting. The ripple current rating is an important parameter indicating the maximum AC current the capacitor can handle without significant degradation. The low ESR characteristic contributes to improved performance, particularly in high-frequency applications, by reducing power losses and heat generation. The capacitor is commonly used for filtering, smoothing, and energy storage in a wide range of electronic devices. It is designed to meet stringent quality standards and provide consistent performance over its operational life. The aluminum case provides mechanical protection and aids in thermal dissipation. The part is available in various packaging options to facilitate automated assembly processes. The electrolyte used in the capacitor is formulated for long life and stable electrical characteristics. It is designed to withstand surge voltages, providing added protection against transient events. The component's construction minimizes inductance, improving its performance in high-frequency circuits. The capacitor is also resistant to vibration and shock, making it suitable for use in rugged environments. The extended lifespan makes it a good choice for equipment requiring minimal maintenance.
