Products specifications

Categories Capacitors
Manufacturer Rubycon
Series KXW
Packaging Bulk
Capacitance 180μF
Tolerance ±20%
Voltage Rating DC 200V
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -25°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 700mA @ 120Hz
Ripple Current - High Frequency 980mA @ 10kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Maximum) 1.457" (37.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 796203-200KXW180MEFC12.5X35
Popularity Medium
Supply and Demand Status Limited
Family Name KXW
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 200KXW180MEFC12.5X35 CAD Model

Description

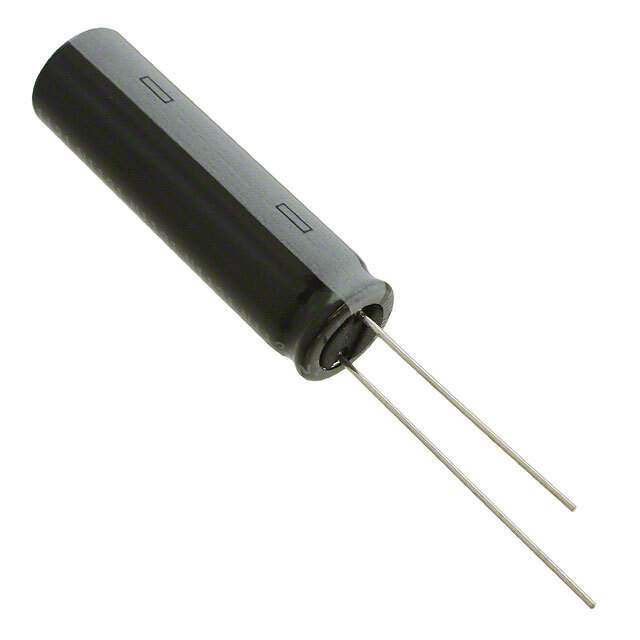

The Rubycon KXW capacitor is a radial, can type capacitor from Rubycon.

  • Capacitance: 180μF
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Operating Temperature Range: -25°C ~ 105°C
  • Ripple Current: 700mA @ 120Hz (low frequency), 980mA @ 10kHz (high frequency)
  • Voltage Rating DC: 200V
  • Application: General
  • Lifetime: 2000 hours @ 105°C
  • Packaging: Bulk
  • Alternative Parts (Cross-Reference): UCY2D181MHD, EPAG201ELL181MK35S, UPT2D181MHD
