Same model may have multiple batches, images only for reference.

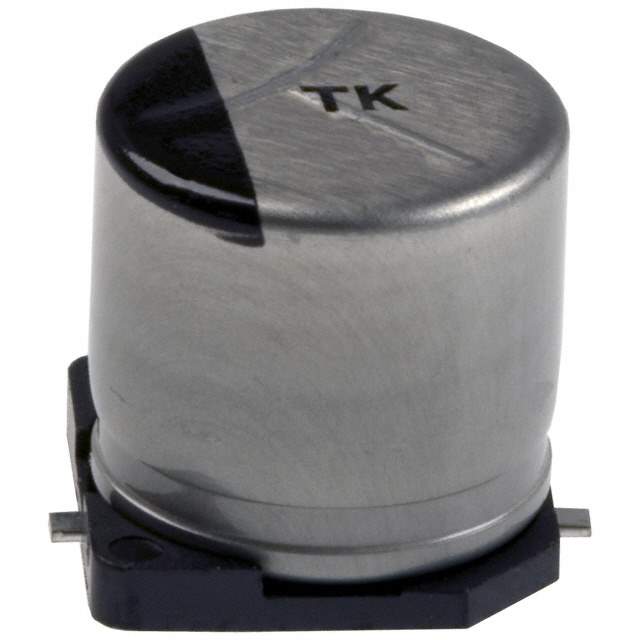

EEE-TK1J471AM Real Image
Same model may have multiple batches, images only for reference.

EEE-TK1J471AM

Part No EEE-TK1J471AM
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 63V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Packaging Reel
Capacitance 470μF
Tolerance ±20%
Voltage - Rated 63V
ESR (Equivalent Series Resistance) 180mOhm at 100kHz
Lifetime at Temp. 2000 Hrs at 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications Use For General
Ripple Current at Low Frequency 375mA at 120Hz
Ripple Current at High Frequency 500mA at 100kHz
Dimension 0.630" Dia (16.00mm)
Height - Seated (Maximum) 0.650" (16.50mm)
Surface Mount Land Size 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 125
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808618-EEE-TK1J471AM
Ultra Librarian 3D Model Ultra Librarian EEE-TK1J471AM CAD Model

Description

The Panasonic Electronic Components 808618-EEE-TK1J471AM is a surface mount aluminum electrolytic capacitor that is ideal for general use.

  • Capacitance: 470μF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • ESR @ 100kHz: 180mOhm
  • Polarization: Yes
  • Surface Mount Land Size: 0.669" L x 0.669" W (17.00mm x 17.00mm)
  • Operating Temperature Range: -40°C to 125°C
  • Dimension: 0.630" Dia (16.00mm)
  • Package: Radial, can - SMD
  • Maximum Seated Height: 0.650" (16.50mm)
  • Supply and Demand: Balanced
  • Manufacturer Pack Quantity: 125
  • MSL Level: 1 (Unlimited)
  • Lifetime @ Temp: 2000 Hrs @ 125°C
  • Ripple Current @ Low Frequency: 375mA @ 120Hz
  • Ripple Current @ High Frequency: 500mA @ 100kHz
