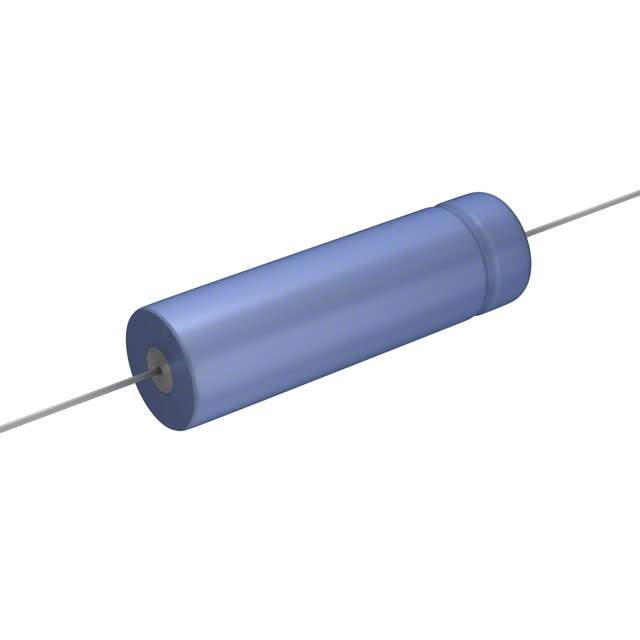

Same model may have multiple batches, images only for reference.

WBR5-450A

Name: WBR5-450A
Brand: Cornell Dubilier Electronics (CDE)
SKU: 792883
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	WBR5-450A
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 5UF 450V AXIAL / Cap Aluminum Lytic 5uF 450V -10% to 50% (11.94 X 39.88mm) Axial 40 Ohm 42mA 2000h 85°C
Datasheet	WBR5-450A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	WBR
Packaging	Bulk
Capacitance	5μF
Tolerance	-10%, +50%
Voltage Rating DC	450V
ESR (Equivalent Series Resistance)	40 Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	42mA @ 120Hz
Ripple Current - High Frequency	54.6mA @ 100kHz
Dimension	0.470" Dia x 1.570" L (11.94mm x 39.88mm)
Mounting Style	Through Hole
Package	Axial, Can
Win Source Part Number	792883-WBR5-450A
Popularity	Medium
Supply and Demand Status	Limited
Family Name	WBR
Introduction Date	September 12, 2002
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian WBR5-450A CAD Model

Description

The Cornell Dubilier Electronics (CDE) WBR series capacitors are designed for general-purpose applications.

Capacitance: 5μF
Tolerance: -10%, +50%
Voltage Rating: 450V DC
Temperature Range: -40°C to 85°C
Material: Aluminum Electrolytic
Package: Axial Can
Lead Spacing: 0.470" Dia x 1.570" L (11.94mm x 39.88mm)
ESR: 40 Ohm @ 120Hz
Popularity: Medium
Supply and Demand Status: Limited
