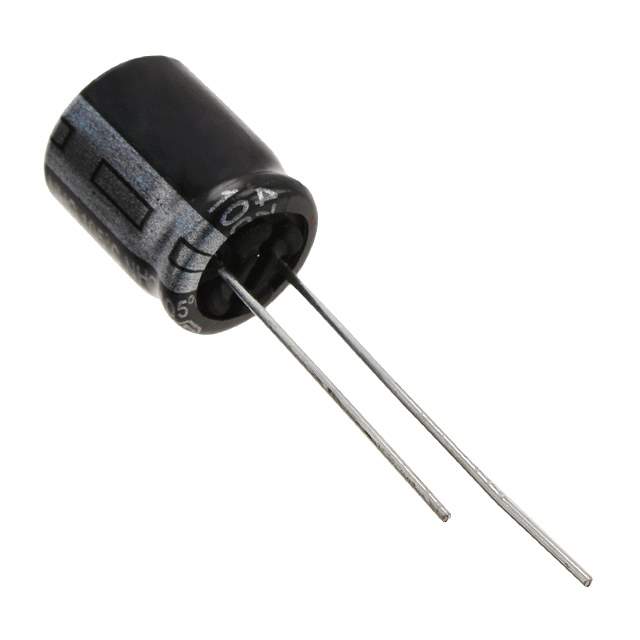

ECA-2CHG100 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series NHG-A
Package Bulk
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 160 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 70 mA @ 120 Hz
Ripple Current @ High Frequency 105 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.531" (13.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-2CH
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names P5856,ECA2CHG100
Standard Package 200
Win Source Part Number 1056757-ECA-2CHG100
Ultra Librarian 3D Model Ultra Librarian ECA-2CHG100 CAD Model

Description

The ECA-2CHG100 is a high-quality aluminum electrolytic capacitor from Panasonic Electronic Components that is designed for general purpose applications.

  • Capacitance: 10 µF
  • Voltage Rating: 160 V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Height: 0.531" (13.50mm)
  • Diameter: 0.394" (10.00mm)
  • Mounting Type: through-hole
  • Polarized: yes
  • Temperature Range: -25°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current: 70 mA @ 120 Hz and 105 mA @ 100 kHz
  • Also: REACH unaffected.
