Same model may have multiple batches, images only for reference.

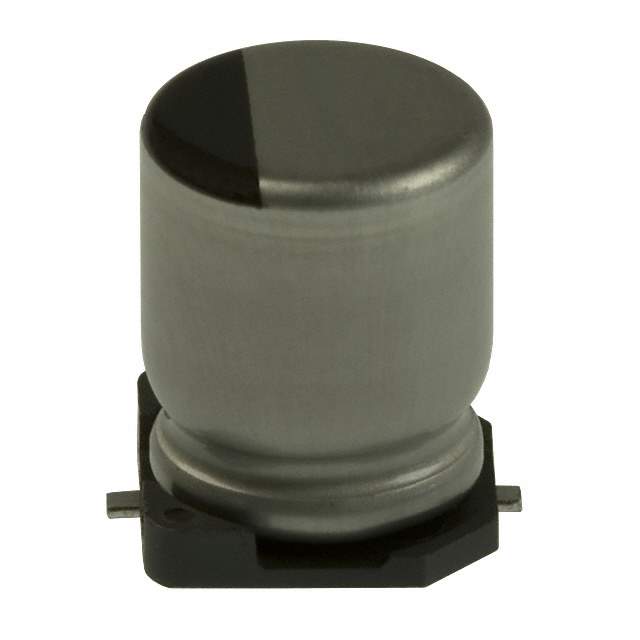

EEE-1HA101UP Real Image
Same model may have multiple batches, images only for reference.

EEE-1HA101UP

Part No EEE-1HA101UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series S
Package Tape & Reel
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 200 mA @ 120 Hz
Ripple Current @ High Frequency 340 mA @ 10 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-1HA
Other Names PCE3917DKR,EEE1HA101UP,Q6498582G,PCE3917TR,PCE3917CT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307306-EEE-1HA101UP
Ultra Librarian 3D Model Ultra Librarian EEE-1HA101UP CAD Model

Description

The Panasonic Electronic Components 1307306-EEE-1HA101UP is a radial, can SMD aluminum electrolytic capacitor with a capacitance of 100 µF and a voltage rating of 50 V.

  • Tolerance: ±20%
  • Polarized: Yes
  • Series: EEE-1HA
  • Application: Automotive
  • ESR (Equivalent Series Resistance): -
  • Ripple Current @ Low Frequency: 200 mA @ 120 Hz
  • Ripple Current @ High Frequency: 340 mA @ 10 kHz
  • Lifetime: 2000 Hrs @ 85°C
  • AEC-Q200 Rated: Yes
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Height: 0.402" (10.20mm)
  • Packaging: Tape and reel
  • Standard Package: 500
  • Not for new designs: Yes
