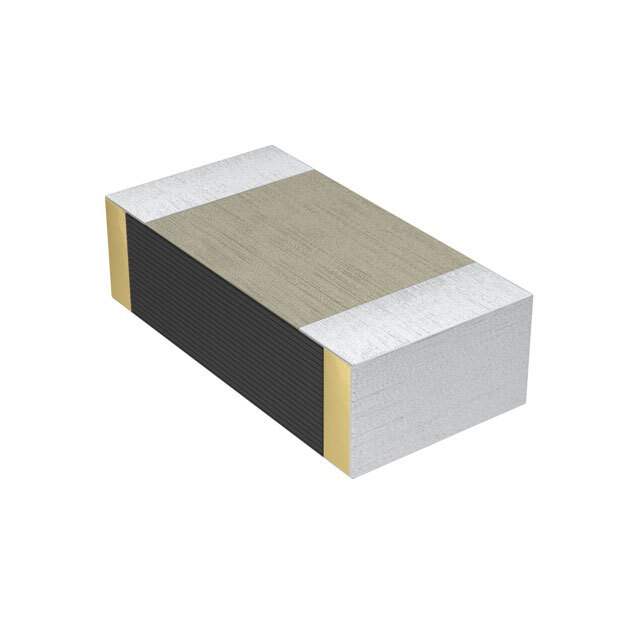

ECH-U1C183JX5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.018μF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.043" (1.10mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 119652-ECH-U1C183JX5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C183JX5 CAD Model

Description

Product Description

The ECH-U1C183JX5 multilayer ceramic capacitor is crafted to meet the needs of modern electronic circuits. It delivers high capacitance at a reduced size and is essential for noise suppression and signal filtering applications.

Applications

  • Mobile Devices
  • Medical Equipment
  • Renewable Energy Systems
  • Embedded Systems
  • Digital Communication Devices

Features and Benefits

  • Compact size suitable for tight spaces
  • High reliability and longevity
  • Low ESR and ESL, improving efficiency
  • Stable capacitance across a broad temperature range
  • Environmentally compliant with industry standards

This component's advanced design and material composition ensure optimal performance, particularly in high-frequency applications.
