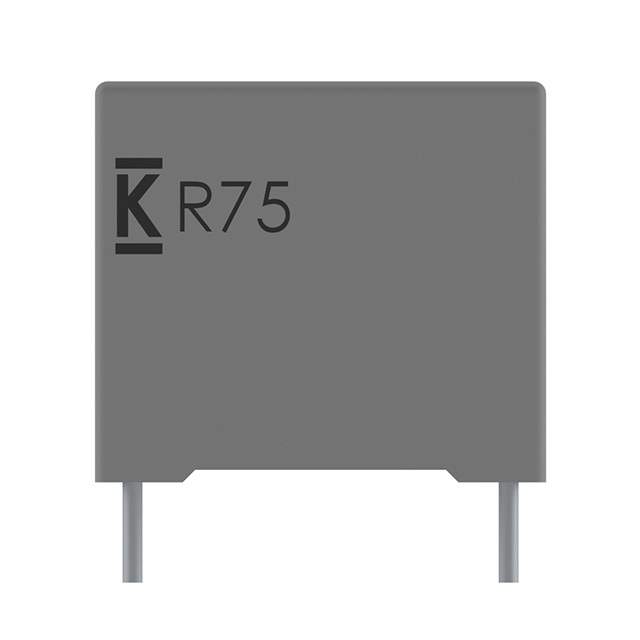

R75PN41205030J Real Image
Same model may have multiple batches, images only for reference.

R75PN41205030J

Part No R75PN41205030J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1.2UF 5% 630VDC RADIAL / 1.2 µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series R75
Package Bulk
Capacitance 1.2 µF
Tolerance ±5%
Voltage Rating - AC 250V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 13.3 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.043" L x 0.571" W (26.50mm x 14.50mm)
Height - Seated (Max) 1.165" (29.60mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings AEC-Q200
Base Product Number R75PN
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-R75PN41205030J
Standard Package 120
Win Source Part Number 1115978-R75PN41205030J
Ultra Librarian 3D Model Ultra Librarian R75PN41205030J CAD Model

Description

The R75PN41205030J is a film capacitor with a capacitance of 1.2 μF and a tolerance of ±5%.

  • Voltage Rating: 250V AC / 630V DC
  • Application: Automotive, High Frequency, Switching, High Pulse DV/DT
  • AEC-Q200: Yes
  • ESR (Equivalent Series Resistance): 13.3 mOhms
  • Dielectric Material: Polypropylene (PP) Metallized
  • Mounting Type: Radial Through-Hole
  • Lead Spacing: 0.886" (22.50mm)
  • Height: 1.165" (29.60mm)
  • Temperature Range: -55°C to 105°C
  • Manufacturer: KEMET
