Same model may have multiple batches, images only for reference.

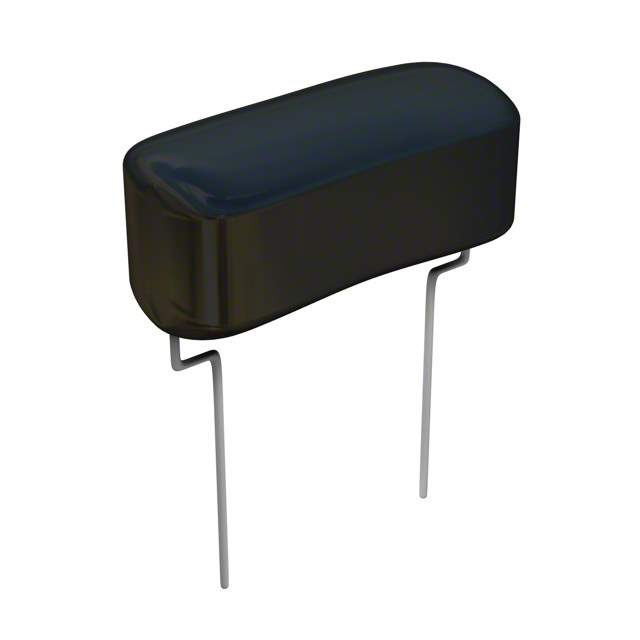

DPFF16S1J-F Real Image
Same model may have multiple batches, images only for reference.

DPFF16S1J-F

Part No DPFF16S1J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 10000PF 5% 1.6KVDC RAD / 10000 pF Film Capacitor 500V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
Datasheet
DPFF16S1J-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series DPFF
Package Bulk
Capacitance 10000 pF
Tolerance ±5%
Voltage Rating - AC 500V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.299" L x 0.701" W (33.00mm x 17.80mm)
Height - Seated (Max) 0.701" (17.80mm)
Termination PC Pins
Lead Spacing 0.720" (18.30mm)
Applications High Pulse, DV/DT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Standard Package 150
Win Source Part Number 1059048-DPFF16S1J-F
Ultra Librarian 3D Model Ultra Librarian DPFF16S1J-F CAD Model

Description

The DPFF16S1J-F is a radial package type film capacitor integrated circuit (IC) manufactured by Cornell Dubilier Electronics (CDE).

  • IC Type: Film Capacitor
  • Package Type: Radial
  • Capacitance: 10000 pF
  • Tolerance: ±5%
  • Voltage Rating: 500V AC
  • Voltage Rating: 1600V DC
  • Application: High Pulse and DV/DT
  • Height (Seated): 0.701 inches or 17.80mm
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.720 inches or 18.30mm
  • Packaging: Bulk
  • Standard Package: 150
  • Temperature Range: -55°C to 105°C
  • Commonly Used In: Film Capacitors
