Same model may have multiple batches, images only for reference.

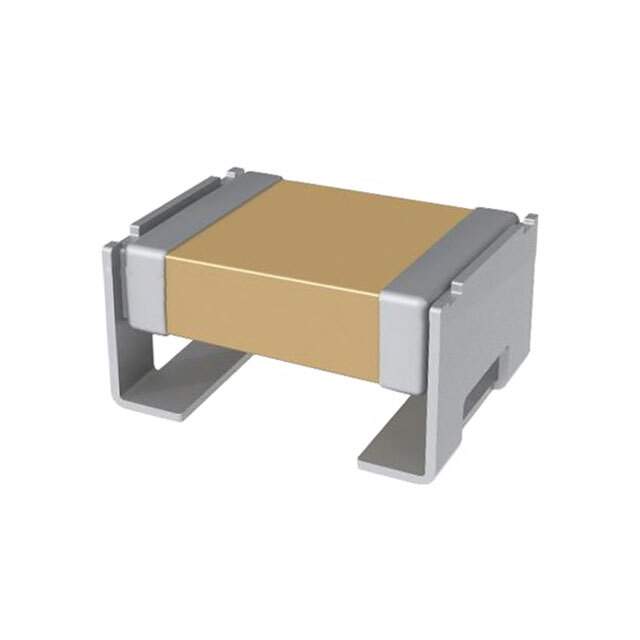

JSNDJ5820KB6L0 Real Image
Same model may have multiple batches, images only for reference.

JSNDJ5820KB6L0

Part No JSNDJ5820KB6L0
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 82UF 10% 63VDC SMD / 82 µF Film Capacitor 40V 63V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked SMD, J-Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series JSN
Package Bulk
Capacitance 82 µF
Tolerance ±10%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case SMD, J-Lead
Dimension 0.681" L x 1.181" W (17.30mm x 30.00mm)
Height - Seated (Max) 0.701" (17.80mm)
Applications DC Link, DC Filtering
Features Low ESR, Low ESL
Base Product Number JSNDJ
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-19735
Standard Package 252
Win Source Part Number 1066455-JSNDJ5820KB6L0
Ultra Librarian 3D Model Ultra Librarian JSNDJ5820KB6L0 CAD Model

Description

The 1066455-JSNDJ5820KB6L0 is a film capacitor that belongs to the JSN series manufactured by KEMET.

  • Series: JSN
  • Capacitance: 82 µF
  • Voltage Rating (AC): 40V AC
  • Voltage Rating (DC): 63V DC
  • Application: DC Filtering, DC Link
  • Features: Low ESR, Low ESL
  • Mounting Type: SMD (SMT)
  • Package/Case: SMD, J-Lead
  • Temperature Range: -55°C to 125°C
