Same model may have multiple batches, images only for reference.

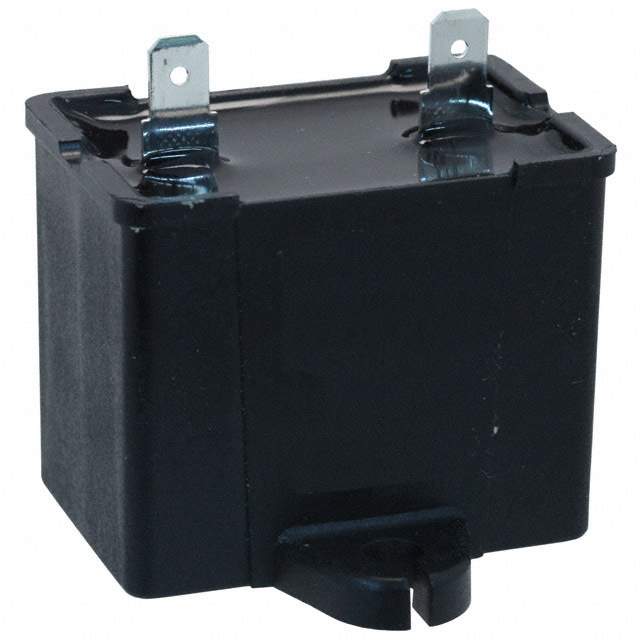

JS211156-AA Real Image
Same model may have multiple batches, images only for reference.

JS211156-AA

Part No JS211156-AA
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 15UF 10% 210VAC CHAS MT / 15 µF Film Capacitor 210V Polypropylene (PP), Metallized Rectangular Box
Datasheet
JS211156-AA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series SMF
Package Bulk
Product Status Obsolete
Capacitance 15 µF
Tolerance ±10%
Voltage Rating - AC 210V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -25°C ~ 70°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.555" L x 1.051" W (39.50mm x 26.70mm)
Height - Seated (Max) 1.634" (41.50mm)
Termination Quick Connect - 0.187" (4.7mm)
Applications Motor Run
Base Product Number JS211156
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names JSU21X156AQH,P9407,P9407-NDR
Standard Package 200
Win Source Part Number 1066413-JS211156-AA
Ultra Librarian 3D Model Ultra Librarian JS211156-AA CAD Model

Description

The Panasonic Electronic Components SMF Series JS211156-AA is a chassis mount film capacitor with a capacitance of 15 µF and a tolerance of ±10%.

  • Capacitance: 15 µF
  • Tolerance: ±10%
  • Termination: 0.187" (4.7mm) Quick Connect
  • Voltage Rating: 210V AC
  • Mounting Type: Chassis Mount
  • Height (Seated): 1.634" (41.50mm)
  • Operating Temperature: -25°C ~ 70°C
  • Package: Rectangular Box
  • Base Product Number: JS211156
  • Status: Obsolete
