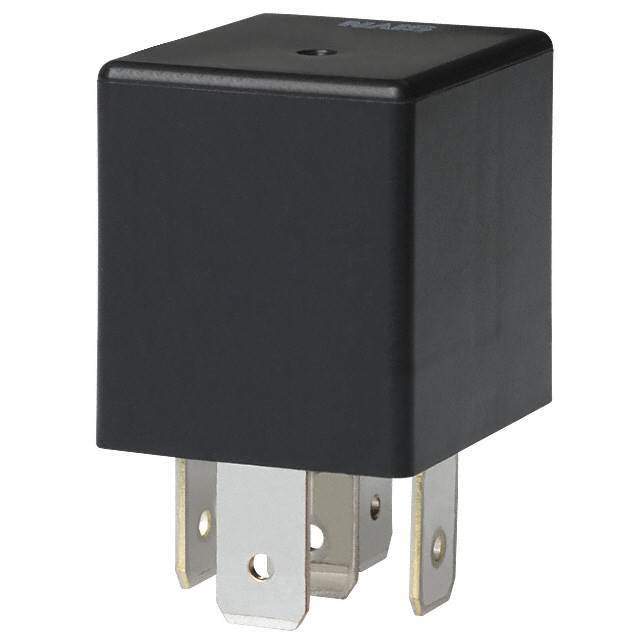

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr Panasonic Electric Works
Series CB
Package Bulk
Coil Type Non Latching
Coil Current 117 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 40 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 7 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 15 ms
Features Sealed - Flux Protection
Mounting Type Socketable
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.4W
Coil Resistance 103 Ohms
Base Product Number CB1F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names CB1F-12V-ND,CB1F12V,255-2179
Standard Package 50
Win Source Part Number 1047390-CB1F-12V
Ultra Librarian 3D Model Ultra Librarian CB1F-12V CAD Model

Description

The Win Source Part Number 1047390-CB1F-12V is a plug-in automotive relay with a contact form of SPDT (1 Form C) and a contact rating of 40A.

  • Coil Voltage: 12VDC
  • Coil Resistance: 103 Ohms
  • Mounting: Socketable
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Panasonic Electric Works
  • MSL Level: 1 (Unlimited)
