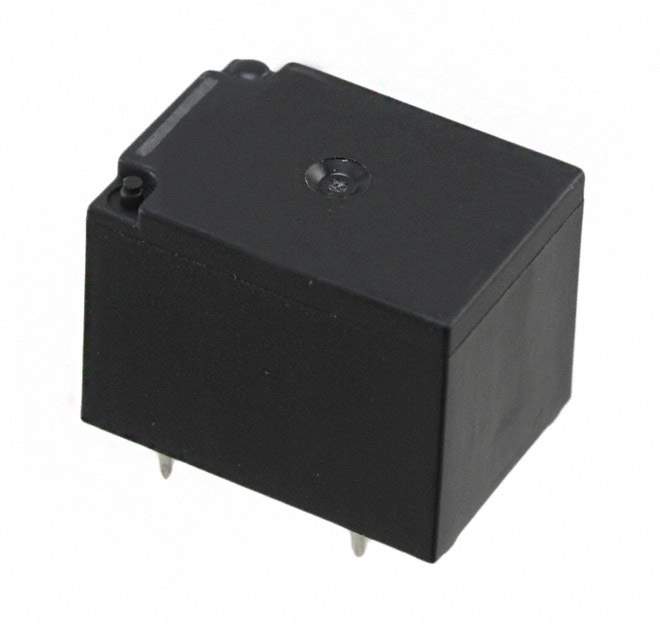

The JS1A-24V-F is a Panasonic Electric Works electronic component that is part of the JS series.

• Termination Style: PC Pin
• Packaging: Bulk
• Contact Form: SPST-NO (1 Form A)
• Contact Material: Silver tin oxide (AgSnO)
• Standard Package: 100
• Coil Resistance: 1.6 kOhms
• Coil Current: 15 mA
• Operate Time: 10 ms
• Relay Type: General purpose
• Coil Type: Non-latching
• Coil Voltage: 24VDC
• Contact Rating (Current): 10 A
• Switching Voltage: 250VAC and 100VDC - Max
• Release Time: 10 ms
• Seal Rating: Fully sealed
• Mounting Type: Through hole
• Temperature Range: -40°C to 70°C
• MSL Level: 1 (Unlimited)
• Coil Insulation: Not provided
• Must Operate Voltage: 16.8 VDC
• Must Release Voltage: 2.4 VDC
• HTSUS: 8536.41.0050
• Status: Obsolete
