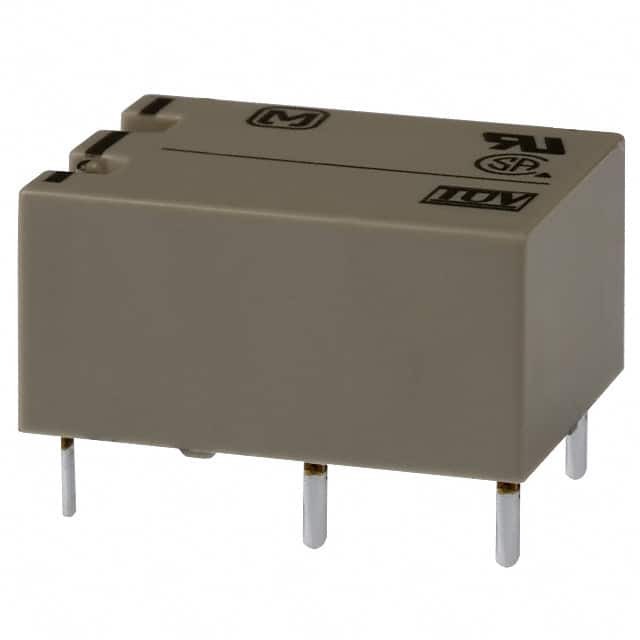

DK2A-12V Panasonic
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DK
Package Box
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number DK2A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 255-1599-NDR,255-1599,AW3023,DK2A12V
Standard Package 50
Win Source Part Number 1019523-DK2A-12V
Ultra Librarian 3D Model Ultra Librarian DK2A-12V CAD Model

Description

The Panasonic DK2A-12V is a power relay that is designed for use in general-purpose applications.

  • Contact Rating: 8 A
  • Switching Voltage: 250V AC and 125V DC
  • Contact Form: DPST-NO
  • Contact Material: Silver Nickel (AgNi)
  • Coil Voltage: 12V DC
  • Coil Resistance: 720 Ohms
  • Mounting Type: Through-Hole
  • Rating: Fully Sealed
