Same model may have multiple batches, images only for reference.

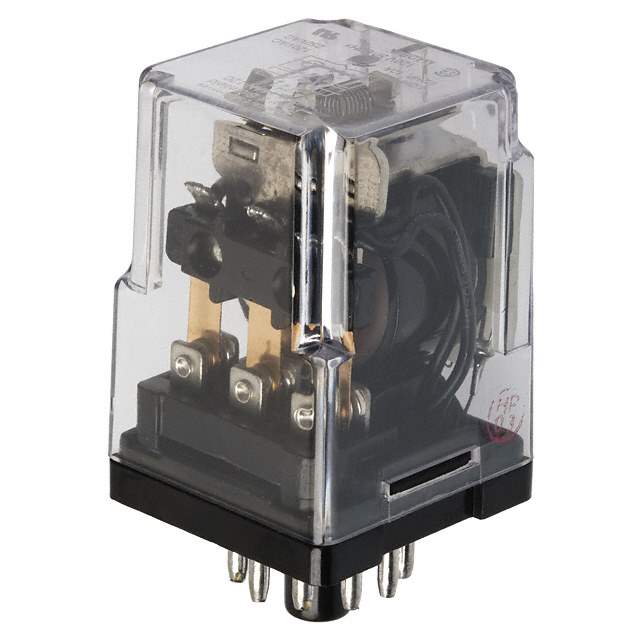

KRPA-14DN-24 Real Image
Same model may have multiple batches, images only for reference.

KRPA-14DN-24

Part No KRPA-14DN-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PDT 10A 24V / General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KRPA
Package Tray
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 10 A
Switching Voltage 240VAC - Max
Coil Current 51 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In, 11 Pin (Octal)
Coil Insulation Class B
Must Operate Voltage 18 VDC
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 472 Ohms
Base Product Number KRPA-14
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Other Names PB636-NDR,PB636,9-1393104-0,KRPA14DN24
Standard Package 25
Win Source Part Number 1026645-KRPA-14DN-24
Ultra Librarian 3D Model Ultra Librarian KRPA-14DN-24 CAD Model

Description

This electronic component is a KRPA series power relay from TE Connectivity Potter & Brumfield Relays.

  • It has a 3PDT (3 Form C) contact form, silver cadmium oxide (AgCdO) contact material, and a coil voltage of 24VDC.
  • The relay type is general purpose with a maximum switching voltage of 240VAC and a must operate voltage of 18VDC.
