Same model may have multiple batches, images only for reference.

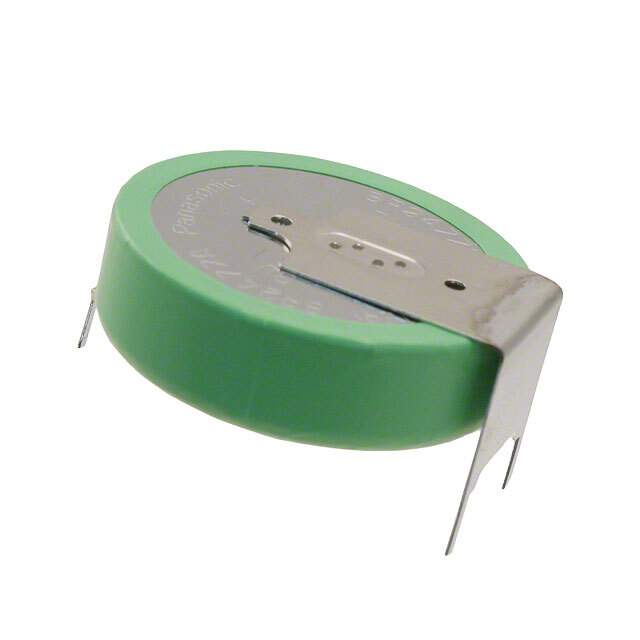

BR2477A/GAN Real Image
Same model may have multiple batches, images only for reference.

BR2477A/GAN

Part No BR2477A/GAN
Manufacturer Panasonic
Catalog Battery Accessories
Description Battery; Lithium; Coin Cell; Insulation Wrapped Tabs; 3V; 1000 MAH; High Temp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Chemistry/Technology Lithium
Depth 24 mm
Height 8.7 mm
Lead Free Lead Free
Length 25 mm
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Cells 1
Number of Pins 3
Output Voltage 3 V
RoHS Compliant
Voltage Rating 3 V
Weight 8 g
Win Source Part Number 1164403-BR2477A/GAN
Categories Battery Accessories
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BR2477A/GAN CAD Model

Description

The BR2477A/GAN by Panasonic is a lithium battery with a voltage rating of 3V.

  • Length: 25mm
  • Height: 8.7mm
  • Weight: 8g
  • Pins: 3
  • Cells: 1
  • Output Voltage: 3V
  • Mounting: Through-Hole
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 125°C
