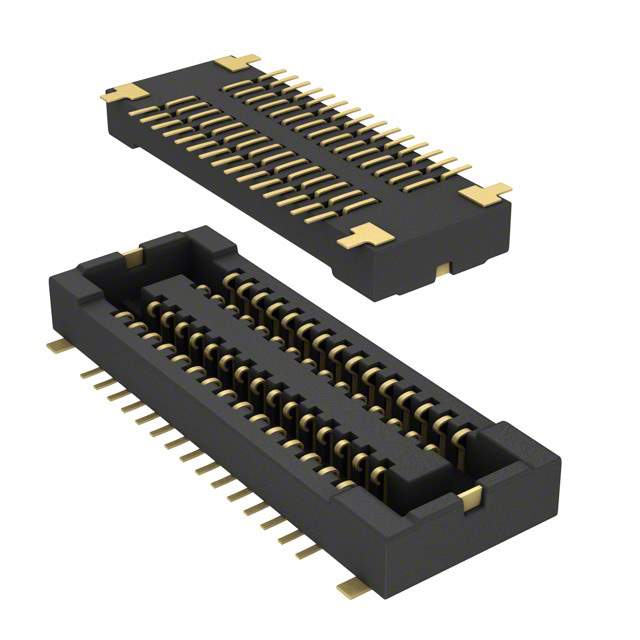

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series F4S
Package Tape & Reel
Connector Type Socket, Outer Shroud Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.2mm
Height Above Board 0.046" (1.16mm)
Base Product Number AXT530
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 255-2987-6,255-2987-1,255-2987-2
Standard Package 3,000
Win Source Part Number 1003951-AXT530224
Ultra Librarian 3D Model Ultra Librarian AXT530224 CAD Model

Description

The Panasonic Electric Works AXT530224 is a 30-position rectangular connector with a pitch of 0.016" (0.40mm).

  • Series: F4S
  • Positions: 30
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Type: Socket type with outer shroud contacts
  • Rows: Two
  • Contact Finish: Gold
  • Package: Tape and reel
  • Mated Stacking Heights: 1.2mm
  • Height Above Board: 0.046" (1.16mm)
  • Mounting: Surface Mount Device (SMD) mountable
  • ECCN: EAR99 compliance
  • Popularity: Low
  • Standard Package: 3000
