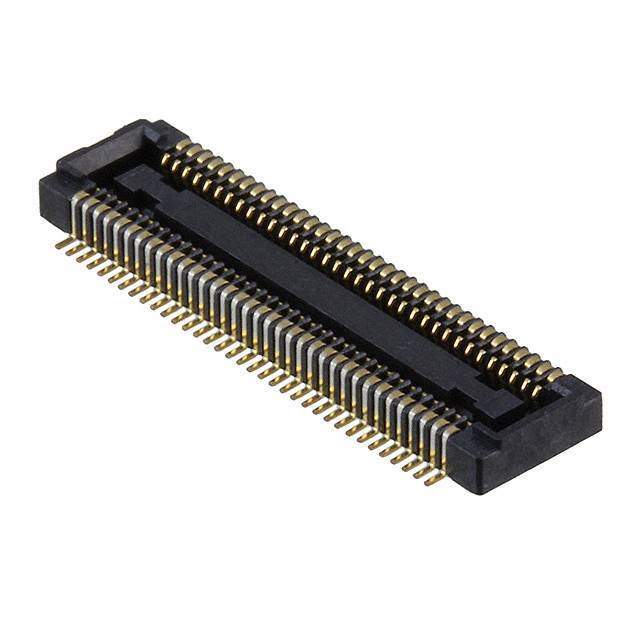

AXK770247G Real Image
Same model may have multiple batches, images only for reference.

AXK770247G

Part No AXK770247G
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 70POS SMD GOLD / 70 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P4
Package Tape & Reel (TR)
Connector Type Socket, Center Strip, Outer Edge Contacts
Number of Positions 70
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 2mm
Height Above Board 0.076" (1.92mm)
Base Product Number AXK770
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000
Win Source Part Number 1152380-AXK770247G
Ultra Librarian 3D Model Ultra Librarian AXK770247G CAD Model

Description

The Panasonic AXK770247G is a connector with 70 positions and a pitch of 0.016" (0.40mm).

  • Number of Positions: 70
  • Pitch: 0.016" (0.40mm)
  • Connector Type: Socket, Center Strip, Outer Edge Contacts
  • Contact Finish: Gold
  • Series: P4
  • Packaging: Tape & Reel
  • Mated Stacking Height: 2mm
  • Height Above Board: 0.076" (1.92mm)
  • Mounting Type: Surface Mount
  • ECCN: EAR99
